New generation of RF GF(S) wireless foot switches
The best choice for your daily routinesThe new generation of RF GF(S) wireless foot switches has been developed especially for industrial applications, where reliability and simple integration are crucial. This product series combines tried-and-tested mechanical engineering with the new energy-efficient SW2.4LE-IND wireless system – perfect for a flexible, cable-free, human-machine interface.
Thanks to a design developed consistently for industry, all wireless foot switches within this series are suited to both individual workstations and complex plant layouts with multiple operating points.
Your benefits at a glance
Suitable for daily use
In industrial routines, controls must function reliably – independently of their ambient conditions, processes or location. Here, the robust design, the high IP67 protection class, and the broad temperature range from -20°C to +55°C enable use even in complex environments – completely without cables.
Typical application fields
- Machine and plant engineering
- Assembly and test stations
- Intralogistics and conveyor technology
- Flexible production lines
Wherever control processes need to be flexible, or cabled components reach their limits, the RF GF(S) wireless foot switch series offers a practicable solution for state-of-the-art human-machine interfaces.
Perfect for your routines!

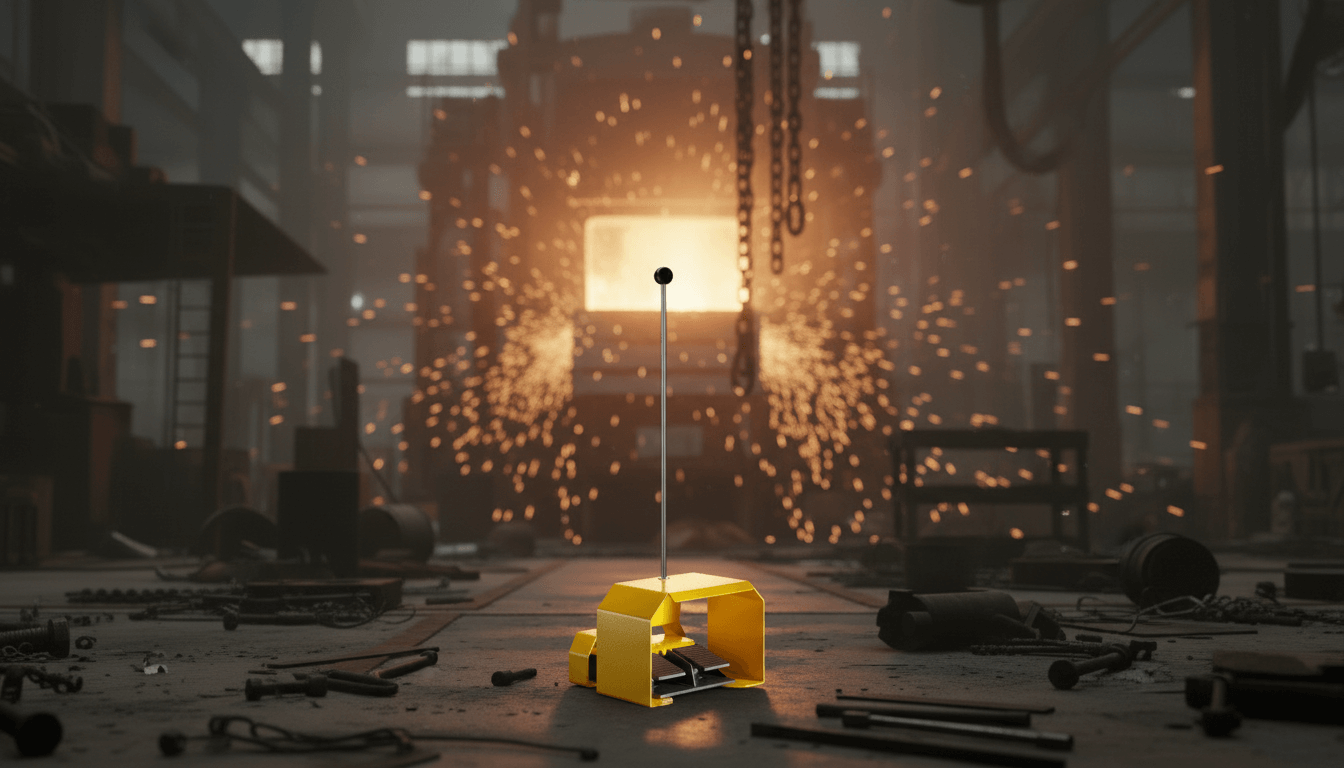

XL protective shield for heavy-duty applications
For particularly complex application environments, these foot switches are available with a robust XL protective shield made of powder-coated steel. This shield completely protects the switch (pedals, cover, etc.) and enables safe and comfortable operation, even with oversized safety shoes designed for heavy-duty applications – e.g. welding.
Ergonomic carrying handle for flexible relocation
With its TST carrying handle, the wireless foot switch is ergonomically comfortable and back-friendly to reposition. This makes the switch easy to adapt to individual work processes and changing locations.

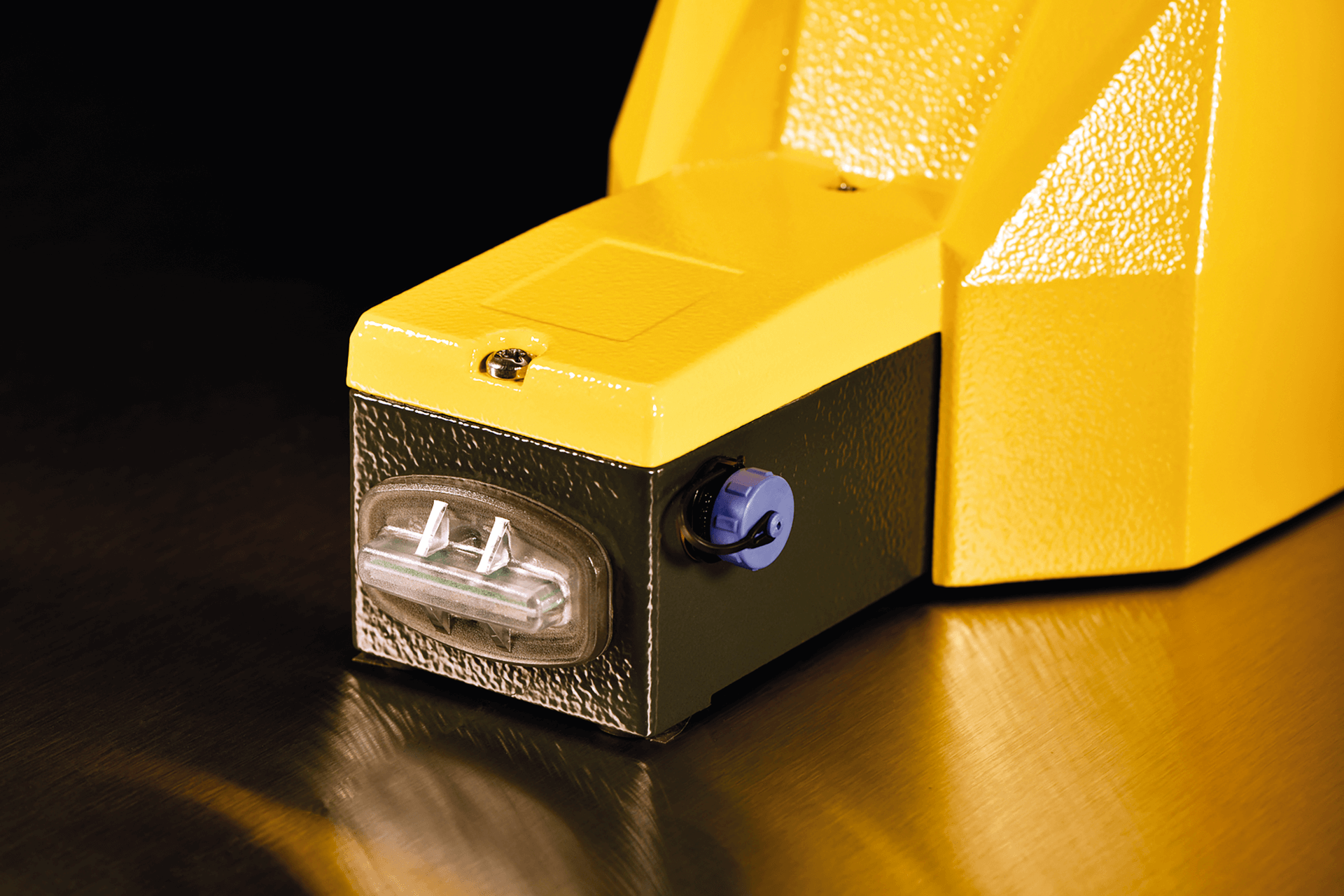

LED status indicator – immediate clarity
The integrated LED status indicator informs users directly from the foot switch about the current operating status of the wireless foot switch. Wireless connection and battery status are visible at a glance – without any additional paraphernalia.
These wireless foot switches have very short charging times, so are ready to use again in no time. In connection with the energy-efficient wireless system, the integrated rechargeable battery has a long lifetime of up to 726 days and supports low-maintenance, uninterrupted operation in industrial routines.
Energy-efficient SW2.4LE-IND wireless system
The wireless foot switches in the RF GF(S) series are all equipped with the SW2.4LE-IND wireless system, developed especially for industrial applications.
This system features:
- stable and reliable radio transmission
- permanently monitored wireless connection
- low energy consumption
- high availability, even in complex industrial environments
In combination with the corresponding RF RxT SW2.4LE-IND receiver, four normally open contacts (NOC) and an additional validate relay are available – for reliable and transparent signal processing.
Why this foot switch series benefits you
The wireless foot switches in the new RF GF(S) generation unite industrial robustness with state-of-the-art, energy-efficient wireless technology. The result: more flexibility, less maintenance, and a reliable, cable-free solution for you – exactly where it counts, in your routines.
Product variants and accessories
The RF GF(S) product series is available with one or two pedals.
Practicable variants, such as the inclusion of an XL protective shield, facilitate adaptation to many different specific industrial applications.
We will be happy to help you select the best variant for your individual application.
