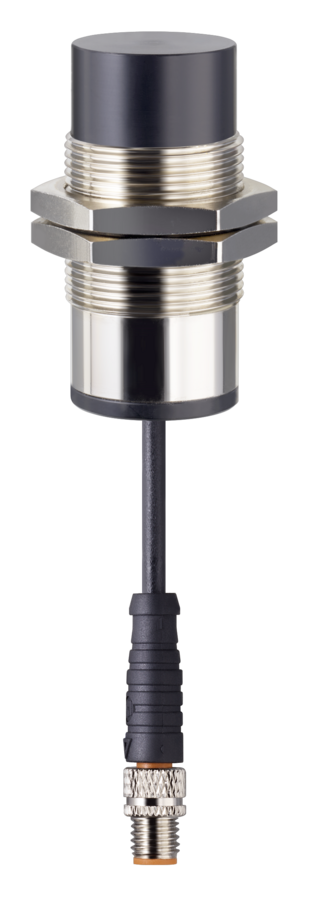

无线接近开关
RF IS M30 FL
金属外壳
M30 x 1.5螺纹
用于连接到无线通用发射器 RF 96 BU 或 RF I/O BU
Flexible (FL) installation with autocalibration
With M8 plug-in connector, 4-pole, A-coded
订购包含2个安装螺母。
技术参数
常规技术参数
适用标准
2006/42/EG, 2014/35/EU, 2014/30/EU, 2011/65/EU, EN IEC 60947-5-2
外壳
黄铜, 镀镍
Front surface
PVC
防护等级
IP67 (IEC/EN 60529)
贮藏和运输温度
–25 °C … +75 °C
环境温度
–25 °C … +75 °C
湿度
95 % non condensing
安装
threads and nuts: M30
连接类型
M8插头，4-针，A-可编码
额定工作电压 Ue
3.0 … 3.6 V
额定工作电流 Ie
on average max. 25 µA (typ. @Vcc = 3.3 V)
接口
M8 plug, 4-pole, A-coded, 1 switching output, 1 calibration input

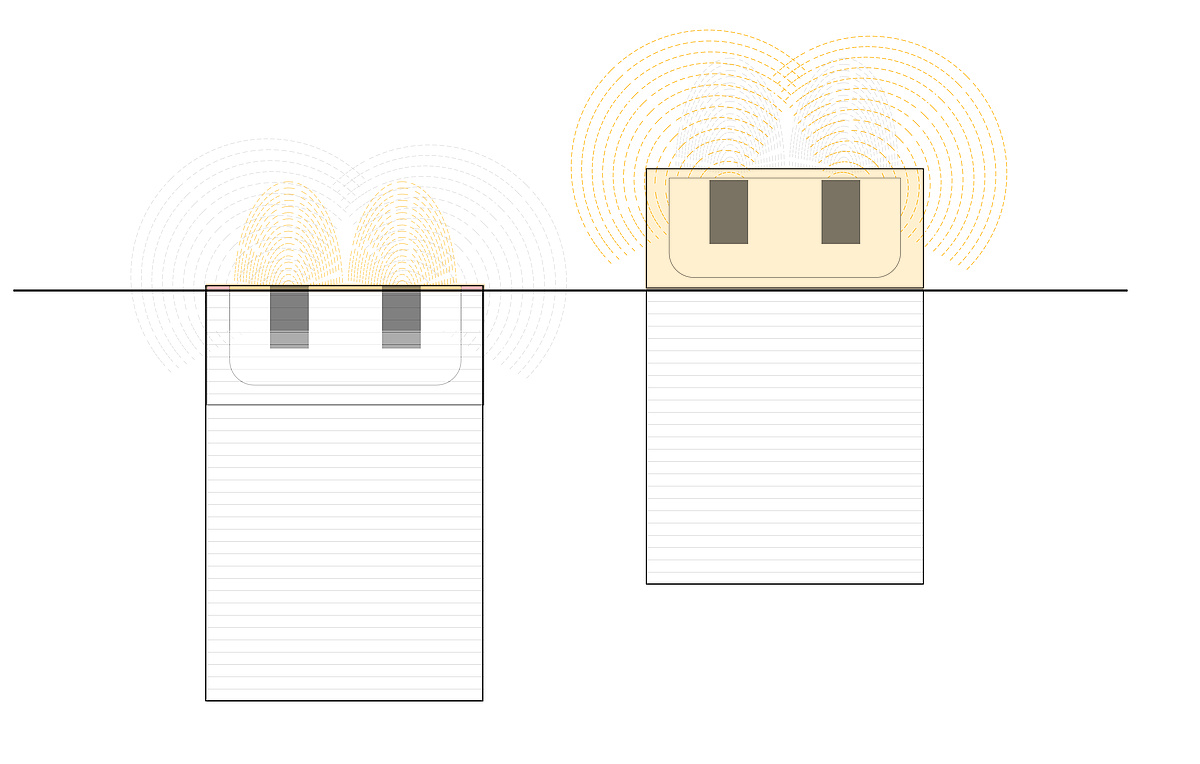

感应距离
齐平安装 *:
sn 23 mm, sr 20.7 … 25.3 mm, sa 18.63 mm, su 18.63 … 27.83 mm
* The values depend on the installation material and installation conditions.
非齐平安装:
sn 15 mm - 铝
sn 12.4 mm - 钢
Measurement frequency
10 Hz (The maximum frequency at which changes in the switching status can be transmitted depends on the radio system.)
注释
The sensor may only be used in combination with RF 96 BU or RF I/O BU
