技术参数
常规技术参数
- 堵头
- 聚酰胺, 阻燃，自熄性, 黑色
- 密封
- EPDM
- 拧紧力矩
- 堵头: 约 1 Nm
- 防护等级
- IP66 (IEC/EN 60529)
- 环境温度
- –60 °C … +80 °C
- 防爆标志
- L II 2G Ex e IIC Gb,
L II 2D Ex tb IIIC Db
IECEx Ex e IIC Gb,
Ex tb IIIC Db
- 产品认证
- PTB 99 ATEX 3133
IECEx PTB 05.0013
- 注释
- When used application range is < -40 °C, the sealing is only intended for a one-time installation. Replace the sealing before mounting it again.
- 重量
- 1 g

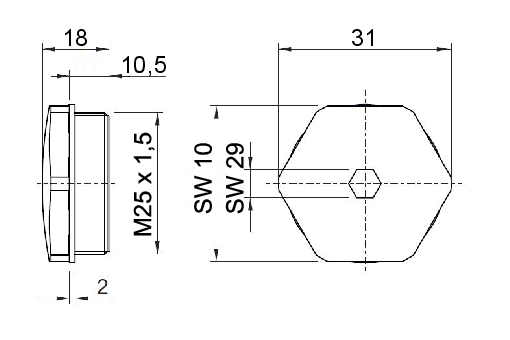

尺寸图
