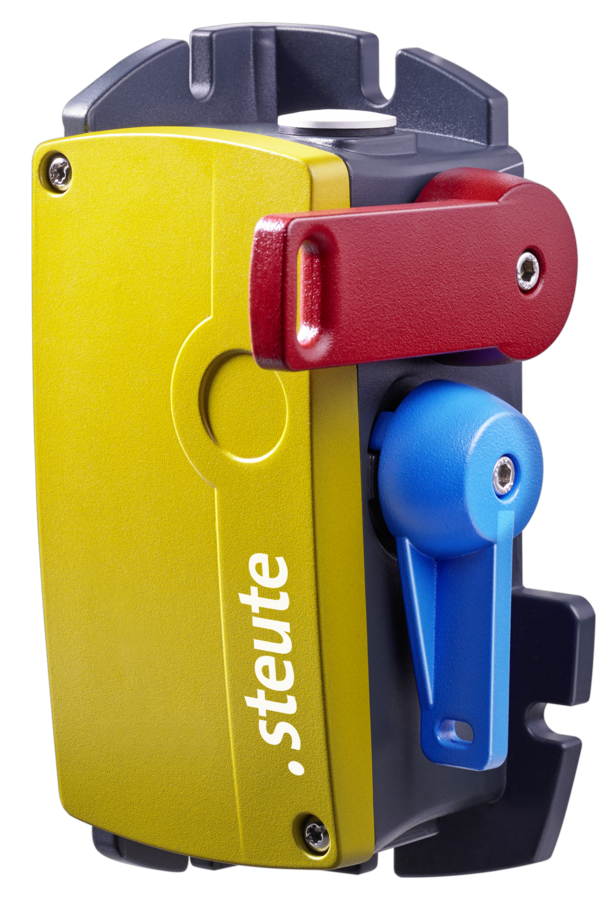

ZS 92 S -40°C ... +85°C IP66/67 Extreme

Applied standards

EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1, EN 620:2011-5.7.2.9, AS 1755-2000-2.7.9.1, AS/NZS 4024.3610:2015-2.10.6.2

Enclosure

aluminium die-cast, corrosion-resistant, powder-coated, passivated, shockproof, anthracite grey, similar to RAL 7016

Cover

aluminium die-cast, corrosion-resistant, powder-coated, passivated, shockproof, signal yellow, similar to RAL 1003

Actuating lever

aluminium die-cast, corrosion-resistant, powder-coated, passivated, shockproof, signal red, similar to RAL 3001

Reset lever

aluminium die-cast, corrosion-resistant, powder-coated, passivated, shockproof, sky blue, similar to RAL 5015

Screws

stainless steel

Tightening torque

cover screws: max. 2.5 Nm
actuator screws: max. 6 Nm

Degree of protection

IP66/IP67 (IEC/EN 60529)

B_10d (10 % load)

100 000

T_M

max. 20 years

Switching system

snap action, positive break NC contacts A

Switching elements

2 NC/2 NO or 3 NC/1 NO contact, type Zb;
Si-Bus: 2 NC contacts, type Zb

Connection

screw connection terminals; with Si-Bus: screw connection terminals, basic strip to connect Dupline Safe input module with connector (see accessories)

Cable cross-section

0.5 ... 2.5 mm² (incl. conductor ferrules)

Cable entry

2 x M25 x 1.5

Rated impulse withstand voltage U_imp

6 kV; with Si-Bus: 4 kV

Rated insulation voltage U_i

400 V; with Si-Bus: 250 V

Conventional thermal current I_the

6 A

Conditional short-circuit current

1100 A

Rated operating current/voltage I_e/U_e

6 A/400 VAC; with Si-Bus: 6 A/250 VAC

Utilisation category

AC-15

Short-circuit protection

6 A gG/gN fuse

Mechanical life

> 50 000 operations

Max. wire length

2 x 100 m

Ambient temperature

–40 °C … +85 °C
Si-Bus: with Si-Bus –40°C ... +70°C; without Si-Bus –40°C ... +85°C

Degree of pollution

3

Actuating force

actuating lever approx. 30 N; reset lever approx. 40 N

Indicator lamp

as option

Pressure equalization element

as option

Approvals

ß d a
