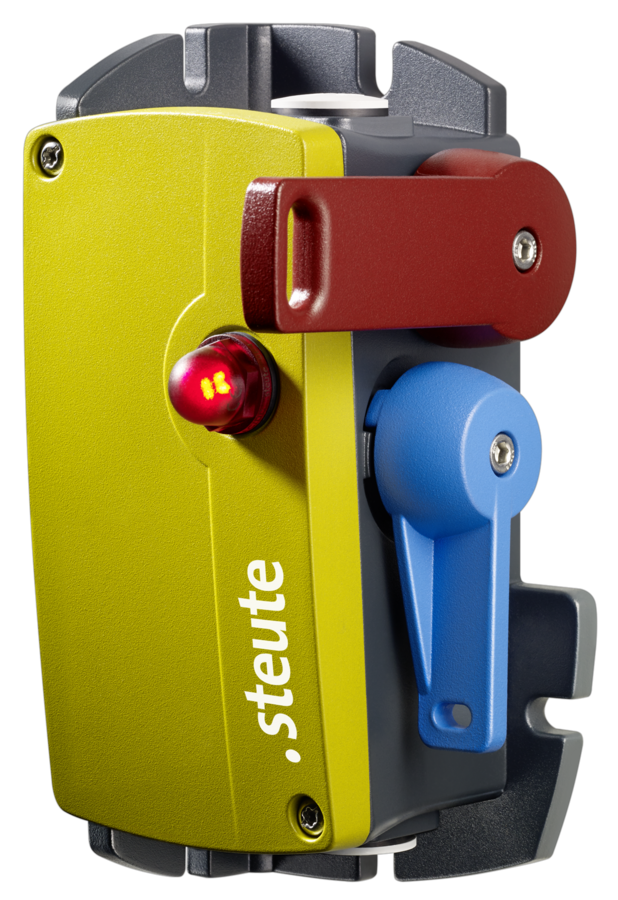

Emergency pull-wire switch
ZS 92 S 13 VD L F -40°C ... +80°C IP66/67 Extreme
Article no.: 1246278
Product features
Temperature resistant from -40 °C to +80 °C
High degree of protection IP66 / IP67
Corrosion-resistant aluminium enclosure
Wire length up to 2 x 100 m
Release by lever
F = Reset lever on front
Rear and base mounting possible
Wire pull and breakage detection
Indicator lamp 24 VAC/DC (red)
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1, EN 60529, EN 620-5.7.2.9, AS 1755-2000-2.7.9.1, AS/NZS 4024.3610:2015-2.10.6.2
- Enclosure
- aluminium die-cast, corrosion-resistant, powder-coated, passivated, shockproof, anthracite grey, similar to RAL 7016
- Cover
- aluminium die-cast, corrosion-resistant, powder-coated, passivated, shockproof, signal yellow, similar to RAL 1003
- Actuating lever
- aluminium die-cast, corrosion-resistant, powder-coated, passivated, shockproof, signal red, similar to RAL 3001
- Reset lever
- aluminium die-cast, corrosion-resistant, powder-coated, passivated, shockproof, sky blue, similar to RAL 5015
- Screws
- stainless steel
- Calotte
- polycarbonate, shockproof, self-extinguishing UL 94 V-0, red transparent, similar to RAL 3000
- Tightening torque
- cover screws: max. 2.5 Nm
actuator screws: max. 6 Nm
- Degree of protection
- IP66/IP67 (IEC/EN 60529)
- B10d (10 % load)
- 100 000
- TM
- max. 20 years
- Switching system
- snap action, positive break NC contacts A
- Switching elements
- 3 NC/1 NO contacts, type Zb
- Connection
- screw connection terminals
indicator lamp: wire 2 x 0.9 mm², AWG 18, wire length approx. 150 mm, with conductor ferrules
- Cable cross-section
- 0.5 ... 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 2 x M25 x 1.5
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Conditional short-circuit current
- 1100 A
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Utilisation category
- AC-15
- Short-circuit protection
- 6 A gG fuse
- Rated operating voltage range UB
- Indicator lamp: 24 VAC/DC +10/-15 %
- Rated operating current Ie
- Indicator lamp: ∼ 15 mA
- Mechanical life
- > 50 000 operations
- Max. wire length
- 2 x 100 m
- Note
- At 3 m distance intermediate wire supports are required. Two compensation springs type ZS 92 S must be installed, see accessories.
- Ambient temperature
- –40 °C … +80 °C
- Degree of pollution
- 3
- Actuating force
- actuating lever approx. 30 N; reset lever approx. 40 N
- Approvals
- ßda
Dimensional drawing
Further drawings

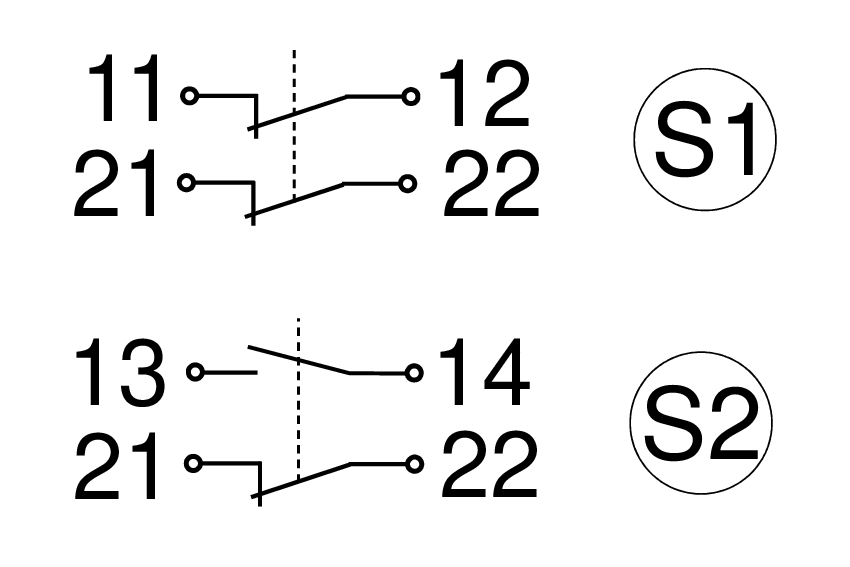

Contact diagram
S1 - Switch insert 1
S2 - Switch insert 2

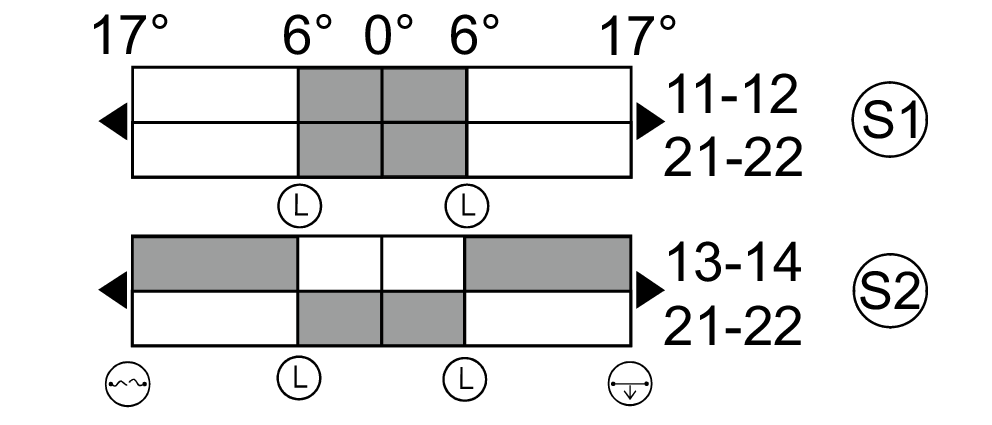

Switching diagram
U Latching point
S1 - Switch insert 1
S2 - Switch insert 2
Switch inserts
S1 - Switch insert 1
S2 - Switch insert 2
Downloads
Variants / Options
The following variants / options are available on request:
Version with Si-Bus
Degree of protection IP69
Pressure equalization element
