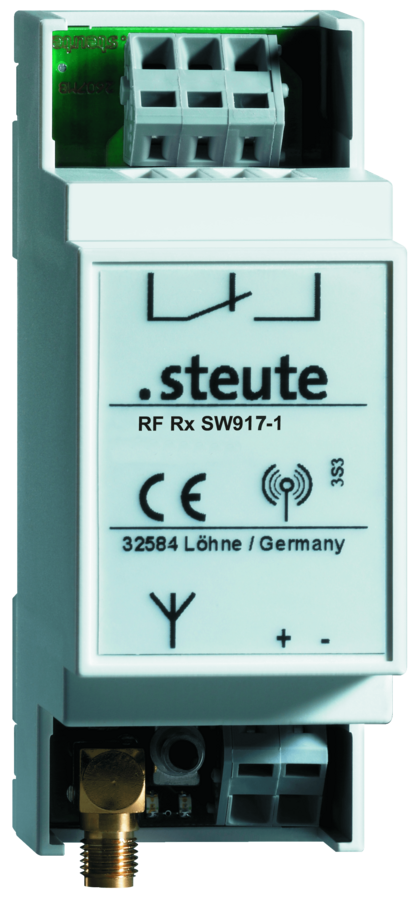

Product features
sWave® wireless technology
1 potential-free relay output
1 change-over contact, max. 6 A
Transmitter/receiver assignment by teaching mode
LEDs for indication of switching state
SMA reverse plug-in connector for external antenna
Notes
External antenna always required for optimum wireless range
Technical data
General technical data
Applied standards
EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 301 489-1, EN 301 489-3, EN 300 220-2, EN 55011, EN 55032
Enclosure
polycarbonate, RAL 7035
Degree of protection
IP20 (IEC/EN 60529)
Mounting
DIN rail mounting
Connection
terminals with CAGE CLAMP WAGO Series 236: 0.08 … 2.5 mm² / AWG 28-12, AWG 12: THHN, THWN, stripping length 5 … 6 mm / 0.22 in
Outputs
1 change-over contact (relay)
Rated operating current/voltage Ie/Ue
max. 0.03 A/24 VDC -15 % … +10 %; max. 0.07 A/24 VAC -15 % … +10 %;
output contacts: 6 A/250 VAC; 2 A/24 VDC
Utilisation category
outputs: AC-15 (at 10 % Ie); DC-13
Rated insulation voltage Ui
250 VAC
Rated impulse withstand voltage Uimp
2.5 kV
Display
green LED: ready for operation,
orange LED: signalling of switching state
Teachable transmitters
40
Telegram rate
max. 12000 telegrams with repetitions/h
Degree of pollution
2
Ambient temperature
0 °C … +55 °C
Storage and shipping temperature
–25 °C … +85 °C
Note
Inductive loads (contactors, relays etc.) are to be suppressed by suitable circuitry.
Wireless approvals
Brazil: ANATEL 04172-18-06718
Wireless technology
Protocol
sWave®
Frequency
917 MHz (Brazil)
Transmission power
< 25 mW
Data rate
66 kbps
Channel bandwidth
550 kHz
