Wireless universal transmitter
RF I/O Vcc extern
Thermoplastic enclosure
sWave® wireless technology (SW868/SW915/SW917/SW922)
Can be combined with 3-wire PNP sensors 24 VDC or external sensors or NO contacts with gold contacts
No wiring and pipe laying required
External power supply via M12 female plug-in connector
Easy programming of receiver
Output signal can be individually configured at the receiver

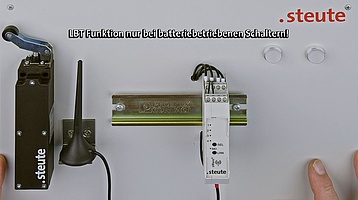

Available with "LBT - Listen before Talk" software (necessary in conjunction with potential interference)
Technical data
General technical data
Applied standards
EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2
Enclosure
ABS, UL 94 HB, RAL 9005
Degree of protection
IP65 (IEC/EN 60529)
Voltage source
24 VDC
Connection

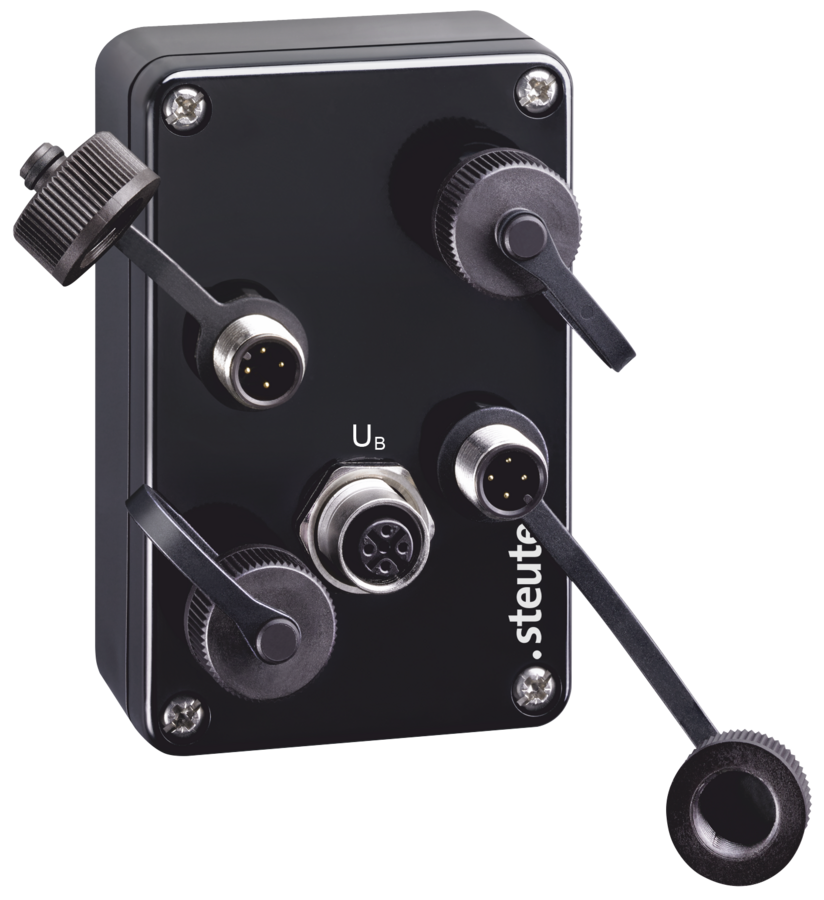

Sensors: plug-in connector 4 x M12 x 1, 4-pole
power supply: 1 x M12 female plug-in connector
Ambient temperature
–20 °C … +65 °C
Switching frequency
max. 5 Hz
Rated operating voltage range UB
18 … 30 VDC Pin 1 and Pin 3, connector M12
Rated insulation voltage Ui
75 VDC
Rated impulse withstand voltage Uimp
0.5 kV
Rated operating current Ie
2.5 mA
Voltage drop Ue - Ua
3.5 V with 4 x 50 mA sensor current
Load current
max. 50 mA per sensor connection
Switching points
> 5 VDC (E1 - E4)
Wireless range
SW868/915/917:
max. 450 m outdoors,
max. 40 m indoors
SW922:
max. 150 m outdoors,
max. 20 m indoors
Actuating time
min. 80 ms
Note

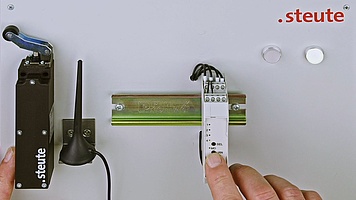

status signal adjustable via jumper, no, 10 s, 100 s, 1000 s, 10000 s
delivery state: jumper position without status signal
Wireless approvals
Europe: RED 2014/53/EU
USA: FCC - XK5-RFRXSW915
Canada: IC - 5158A-RFRXSW915
Mexico: IFT - RCPSTRF17-1886
Brazil: ANATEL 04172-18-06718
Japan: ? ARIB STD-T108: 204-610002
Downloads
Variants / Options
The following variants / options are available on request:
LBT - Listen before Talk software (necessary in conjunction with potential interference)
