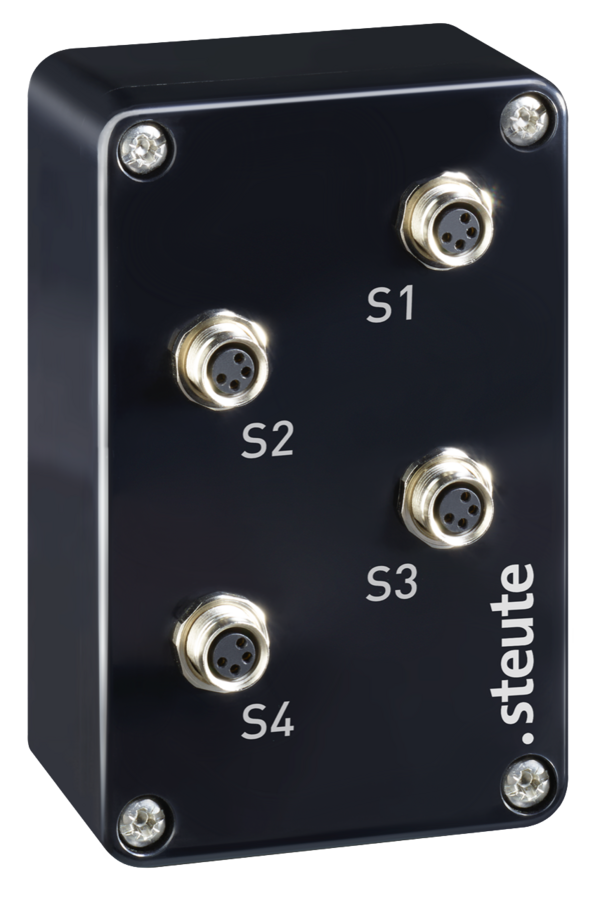

Wireless universal transmitter
RF I/O BU
Thermoplastic enclosure
4 x Socket M8
sWave® wireless technology (SW868/SW915/SW917/SW922)
No wiring and cable laying required
Power supply by Lithium battery
Easy programming of receiver
Output signal can be individually configured at the receiver
LBT - Listen before Talk Firmware
Variant with SMA connector available for external antenna to increase range
The RF I/O BU may be used in combination with wireless inductive sensor RF IS M… FL.
Technical data
General technical data
Applied standards
EN IEC 60947-5-1, EN 301 489-3, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 63000
Enclosure
ABS, UL 94 HB, RAL 9005
Tightening torque
enclosure mounting screws: max. 1.5 Nm
cover screws: max. 1.5 Nm
Degree of protection
IP65 (IEC/EN 60529), only with plugged cables and/or with closed protective caps
Voltage source
lithium battery (replaceable)
Ambient temperature
–20 °C … +80 °C
Type of installation
mount on an even surface
Mounting position
any
Mounting
screw connection
Connection
4 x socket M8 x 1, 4-pole
Switching thresholds
max. switch-on threshold: 2.05 V,
min. switch-off threshold: 0.95 V
Switch-on delay ton
max. 0.94 ms
Switch-off delay toff
max. 94.7 ms
Actuating time
min. 80 ms
Switching frequency
max. 5 Hz
Standby current
60 µA
Wireless range
SW868/915/917:
max. 450 m outdoors,
max. 40 m indoors
SW922:
max. 150 m outdoors,
max. 20 m indoors
Note
status signal – can be individually configured via radio receiver (delivery state: without status signal)
LBT – can be deactivated via radio receiver (e.g. in conjunction with repeaters)
transmission of battery voltage and switching condition
Wireless approvals
Europe: RED 2014/53/EU
USA: FCC-Id. XK5-RFRXSW915
Canada: IC - 5158A-RFRXSW915
Mexico: IFT - RCPSTRF17-1886
Brazil: ANATEL 04172-18-06718
Japan: ? ARIB STD-T108: 204-610002
