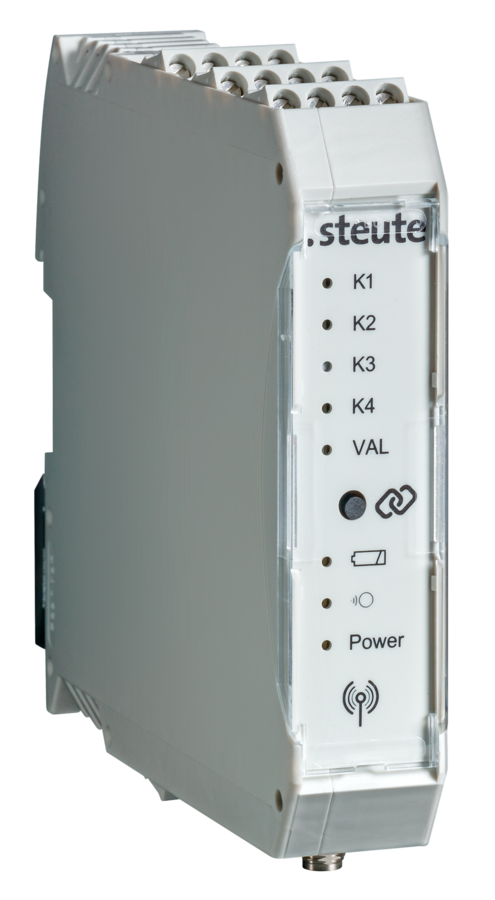

Wireless receiver
RF RxT SW2.4LE-IND
2.4 GHz Low Energy wireless technology
5 potential-free relay outputs (5 NO contacts)
Comfortable pairing
LEDs for indication of switching state
Available soon
For ideal range, an external steute antenna is always required.
Technical data
General technical data
Applied standards
EN 300 328, EN 301 489-17, EN IEC 62368-1, EN 60947-5-1, EN IEC 63000
Enclosure
polyamide, self-extinguishing UL 94 V-0, RAL 7035
Tightening torque
screw connection terminals: 0.5 … 0.6 Nm
Degree of protection
IP20 (IEC/EN 60529)
Mounting
DIN rail mounting
Connection
screw connection terminals 0.14 mm² - 2.5 mm² / AWG 26 … 14, stripping length 8 mm / 0.3 in
Rated operating current/voltage Ie/Ue
< 60 mA/24 VDC ±15 %;
output contacts: 5 A / 250 VAC, 30 VDC (resistive load)
Outputs
5 NO contacts (relay)
LED display
LED Power:
green: power supply is switched on
red: internal error
LEDs K1…4 + VAL:
off: relay not energised
orange: relay energised
Degree of pollution
2
Rated insulation voltage Ui
250 VAC
Rated impulse withstand voltage Uimp
2.5 kV
Ambient temperature
0 °C … +55 °C
Storage and shipping temperature
–25 °C … +85 °C
Teachable transmitters
1
Telegram rate
20 ms (bidirectional)
Synchronisation after sleep mode
67 ms (typical), 110 ms (max)
Mechanical life
K1…4: > 5x106 operations
VAL: > 10x106 operations
Electrical life
K1…4: > 1x105 operations AC1
VAL: > 1x105 operations AC1
Shock resistance
K1…4: 1 g
VAL: 7 g
Vibration resistance
K1…4: 2 g (10-55 Hz)
VAL: 2 g (10-200 Hz)
Risk time
120 ms: After the risk period has elapsed, the receiver switches to the safe state (all relays de-energised)
Wireless approvals
Europe: RED 2014/53/EU
USA: FCC-Id. XK5-SW24LE
Canada: IC - 5158A-SW24LE
Japan: ? ARIB STD-T66: 204-650001
Wireless technology
Protocol
SW2.4LE
Frequency
2.4 - 2.4835 GHz
Transmission power
max. 10 dBm (10mW)
Data rate
1000 kbps
Wireless range
max. 45 m indoors
Channel spacing
2000 kHz
Modulation type
GFSK, adaptive frequency hopping of 40 channels
