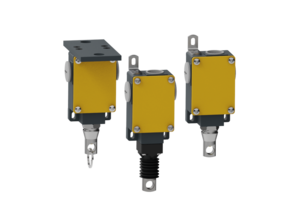

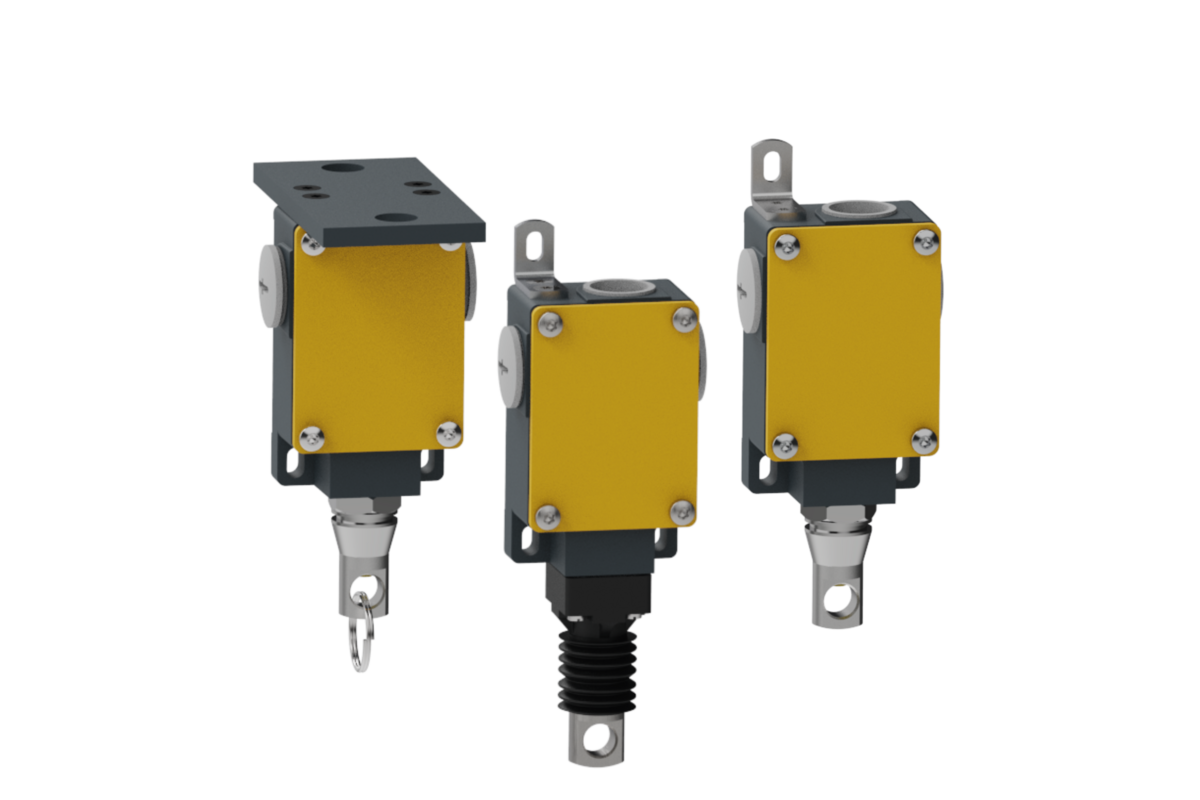

Pull-wire switch
ES 61 Z / EM 61 Z
Metal enclosure
Slow or snap action
Wall or ceiling mounting
Version for wall mounting with mounting angle
Version for ceiling mounting with mounting plate
Pull-wire function
Watertight collar W for protection against penetration of dirt available
Loading...
Found 7 results
Product
Standard Version
Product
Standard Version
Product
Standard Version
Product
Product
Standard Version
Product
Product
Loaded 7 from 7 results
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated
- Cover
- steel, powder-coated
- Degree of protection
- IP65 (IEC/EN 60529)
- Contact material
- silver
- Switching elements
- 1 NC/1 NO or 2 NO contacts, type Zb
- Switching system
- slow or snap action
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 3 x M20 x 1.5 (for cable glands only)
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- ES 61 Z 1Ö/1S: 16 A
ES 61 Z 2S: 6 A
EM 61 Z 1Ö/1S: 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- ES 61 Z 1Ö/1S: 16 A/400 VAC
ES 61 Z 2S: 6 A/400 VAC
EM 61 Z 1Ö/1S: 6 A/400 VAC
- Short-circuit protection
- ES 61 Z 1Ö/1S: 16 A gG fuse
ES 61 Z 2S: 6 A gG fuse
EM 61 Z 1Ö/1S: 6 A gG fuse
- Ambient temperature
- –20 °C … +80 °C
- Mechanical life
- > 1 million operations
- Indicator lamp
- as option
- Operation cycles
- max. 3600/h
- Actuating force
- max. 50 N
Downloads
Variants / Options
The following variants / options are available on request:
Various spring force variants (actuating forces)
