Product features
Metal enclosure
Version for wall mounting with mounting angle
Slow action: 2 contacts
Pull-wire function
Watertight collar W for protection against penetration of dirt
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
aluminium die-cast, powder-coated
Cover
steel, powder-coated
Degree of protection
IP65 (IEC/EN 60529)
Contact material
silver

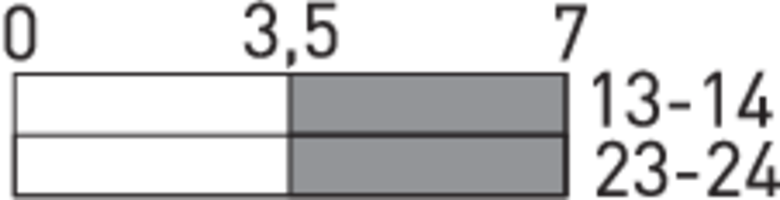

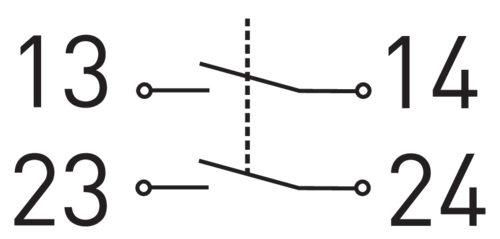

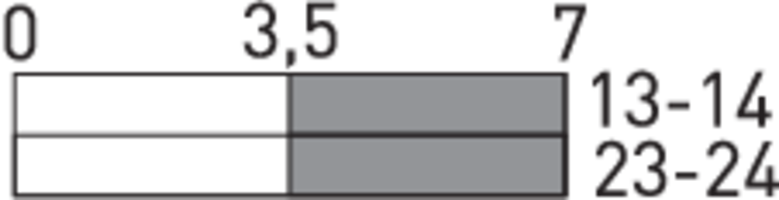

Switching elements
2 NO contacts, type Zb
Switching system
slow action
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
3 x M20 x 1.5 (for cable glands only)
Rated impulse withstand voltage Uimp
6 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG/gN fuse
Ambient temperature
–20 °C … +80 °C
Mechanical life
> 1 million operations
Operation cycles
max. 3600/h
Actuating force
max. 50 N
Approvals
a
Weight
342 g
Downloads
Variants / Options
The following variants / options are available on request:
Various spring force variants (actuating forces)
