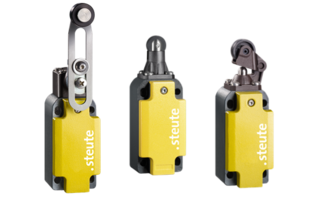

ES 98 / EM 98 -40°C IP66 Extreme

Applied standards

EN ISO 13849-1, EN 60947-5-1, EN ISO 14119

Enclosure

aluminium die-cast, corrosion-resistant, powder-coated, anthracite grey, similar to RAL 7016

Cover

stainless steel 1.4401, powder-coated, signal yellow, similar to RAL 1003

Switch type

type 1

Coding level

no coding

Degree of protection

IP66/IP67 (IEC/EN 60529)

B_10d (10 % load)

2 million

T_M

max. 20 years

Contact material

silver

Switching system

slow or snap action, positive break NC contacts A; positive break depends on the actuator used

Switching elements

1 NC/1 NO contact or 2 NC/1 NO, type Zb

Connection

screw connection terminals

Cable cross-section

2 contacts: max. 2.5 mm², 3 contacts: max. 1.5 mm² (incl. conductor ferrules)

Cable entry

1 x M20 x 1.5 (for cable glands only)

Rated impulse withstand voltage U_imp

4 kV

Rated insulation voltage U_i

400 V

Conventional thermal current I_the

2 contacts: 6 A, 3 contacts: 1.5 A

Rated operating current/voltage I_e/U_e

2 contacts: 6 A/250 VAC; 0.25 A/230 VDC
3 contacts: 1.5 A/230 VAC; 0.27 A/250 VDC

Utilisation category

AC-15; DC-13

Short-circuit protection

2 contacts: 6 A gG fuse
3 contacts: 1.5 A gG fuse

Mechanical life

> 1 million operations

Operation cycles

max. 1800/h

Ambient temperature

–40 °C … +60 °C

Approvals

d a <
