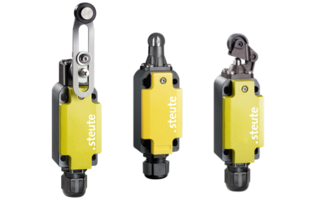

Position switch
ES 98 / EM 98 +90°C IP69 Extreme
Heat-resistant up to +90 °C
High degree of protection IP69, IP69K
Metal enclosure
Design to EN 50041
Slow or snap action
Technical data
General technical data
Applied standards
EN ISO 13849-1, EN 60947-5-1, EN ISO 14119
Enclosure
aluminium die-cast, corrosion-resistant, powder-coated, anthracite grey, similar to RAL 7016
Cover
stainless steel 1.4401, powder-coated, signal yellow, similar to RAL 1003
Switch type
type 1
Coding level
no coding
Degree of protection
IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653)
B10d (10 % load)
2 million
TM
max. 20 years
Contact material
silver
Switching system
slow or snap action, positive break NC contacts A; positive break depends on the actuator used
Switching elements
1 NC/1 NO contact or 2 NC/1 NO, type Zb
Connection
screw connection terminals
Cable cross-section
2 contacts: max. 2.5 mm², 3 contacts: max. 1.5 mm² (incl. conductor ferrules)
Cable entry
1 x M20 x 1.5 (for cable glands only)
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
2 contacts: 6 A, 3 contacts: 1.5 A
Rated operating current/voltage Ie/Ue
2 contacts: 6 A/250 VAC; 0.25 A/230 VDC
3 contacts: 1.5 A/230 VAC; 0.27 A/250 VDC
Utilisation category
AC-15; DC-13
Short-circuit protection
2 contacts: 6 A gG/gN fuse, 3 contacts: 1.5 A gG/gN fuse
Mechanical life
> 1 million operations
Operation cycles
max. 1800/h
Ambient temperature
–20 °C … +90 °C
Approvals
d a
