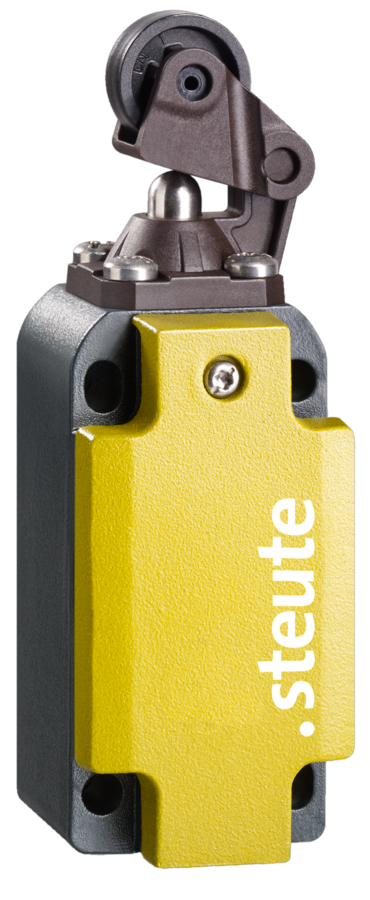

Position switch with safety function
ES 98 H-12 -40°C IP66 Extreme
Article no.: 1305071Old article no.: 9103139001
contact usProduct features
Cold-resistant down to -40 °C
High degree of protection IP66
Metal enclosure

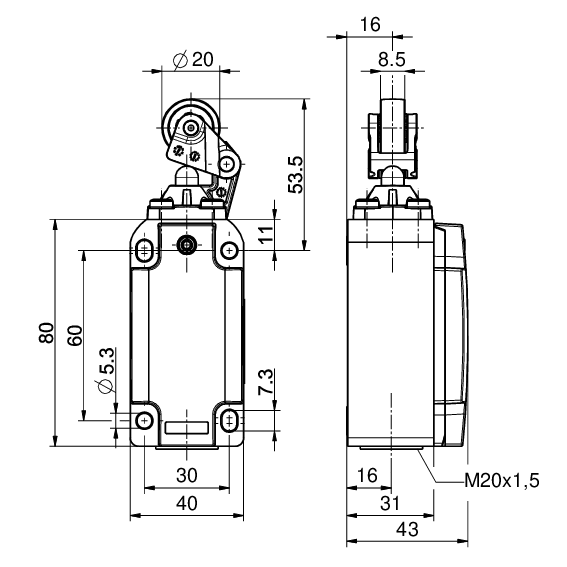

Design to EN 50041

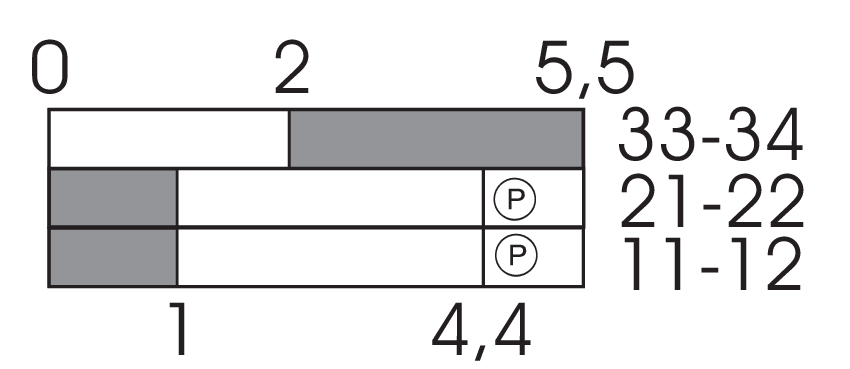

Slow action A, 2 NC/1 NO contact with double break
Actuator: Roller lever H
Actuating speed max. 0.5 m/s with an actuating angle of 30°
Actuation parallel to switch from right
Wear-resistant plastic roller
Actuator can be repositioned by 4 x 90°
Notes
Actuation from the left should be avoided since this reduces the mechanical life of the position switch.
Technical data
General technical data
Applied standards
EN ISO 13849-1, EN 60947-5-1, EN ISO 14119
Enclosure
aluminium die-cast, corrosion-resistant, powder-coated, anthracite grey, similar to RAL 7016
Cover
stainless steel 1.4401, powder-coated, signal yellow, similar to RAL 1003
Switch type
type 1
Coding level
no coding
Degree of protection
IP66/IP67 (IEC/EN 60529)
B10d (10 % load)
2 million
TM
max. 20 years
Contact material
silver
Switching system
slow action, positive break NC contacts A
Switching elements
2 NC/1 NO contact, type Zb
Connection
screw connection terminals
Cable cross-section
max. 1.5 mm² (incl. conductor ferrules)
Cable entry
1 x M20 x 1.5 (for cable glands only)
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
1.5 A
Rated operating current/voltage Ie/Ue
1.5 A/230 VAC; 0.27 A/250 VDC
Utilisation category
AC-15; DC-13
Short-circuit protection
1.5 A gG/gN fuse
Mechanical life
> 1 million operations
Operation cycles
max. 1800/h
Ambient temperature
–40 °C … +60 °C
Approvals
da
Weight
272 g
