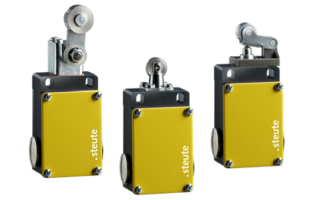

Position switch
ES 41 -35°C ... +180°C Extreme
Cold-resistant down to -35 °C or heat-resistant up to +180 °C
Metal enclosure
Slow action
2 contacts
3 cable entries M16 x 1.5
Attention: Please state required international approvals with your order!
When used as safety switch, secure the enclosure against slipping with appropriate means, e.g. pinning.
Technical data
General technical data
Applied standards
EN ISO 13849-1, EN 60947-5-1, EN ISO 14119
Enclosure
aluminium die-cast, powder-coated
Cover
steel, powder-coated
Switch type
type 1
Coding level
no coding
Degree of protection
IP65 (IEC/EN 60529)
B10d (10 % load)
2 million
TM
max. 20 years
Contact material
silver
Switching system
slow action, positive break NC contacts A; positive break depends on the actuator used
Switching elements
1 NC/1 NO contact or 2 NC contacts
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
3 x M16 x 1.5
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG/gN fuse
Mechanical life
> 1 million operations
Operation cycles
max. 1800/h
Ambient temperature
–35 °C … +180 °C (depending on the variant)
Approvals
a
d *
* depending on the variant
Downloads
Variants / Options
The following variants / options are available on request:
Plug-in connector M12 x 1, 4-pole
