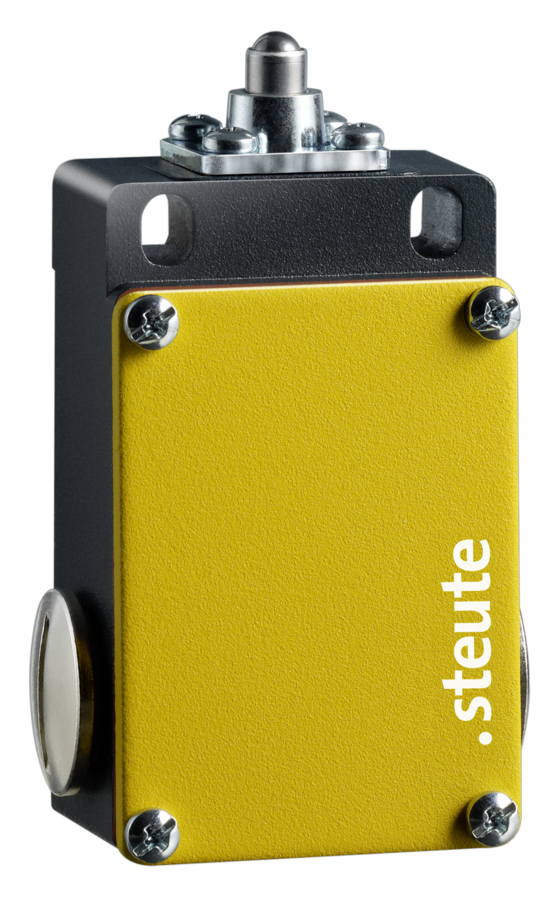

Position switch with safety function

ES 41 1Ö/1S +180°C Extreme

Article no.: 1046259Old article no.: 41001905

Standard version
contact us

Product features

Safety

  • Metal enclosure

  • 3 cable entries M16 x 1.5

  • Heat-resistant up to +180 °C

  • Locking screws, brass nickel-plated

  • Actuator: Plunger

  • Vertical actuation or actuation from side possible

  • Actuator with captive stainless steel ball

Technical data

Applied standards
EN ISO 13849-1, EN 60947-5-1, EN ISO 14119
Enclosure
aluminium die-cast, powder-coated, RAL 7016
Cover
steel, powder-coated, RAL 1003
Switch type
type 1
Coding level
no coding
Degree of protection
IP65 (IEC/EN 60529)
B10d (10 % load)
2 million
TM
max. 20 years
Contact material
silver
Switching system
slow action, positive break NC contacts A
Switching elements
1 NC/1 NO contact, type Za
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
3 x M16 x 1.5
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG fuse
Actuating speed
max. 0.5 m/s with a vertical actuating angle of 20°
Mechanical life
> 1 million operations
Operation cycles
max. 1800/h
Ambient temperature
–20 °C … +180 °C
Repeat accuracy of switching points
± 0.1 mm
Approvals
a
Weight
160 g

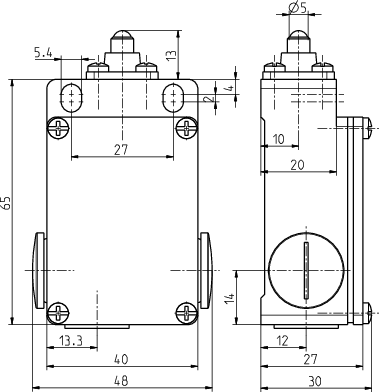

Dimensional drawing

Further drawings

Contact diagram
Switching diagram

T Positive break travel/angle

Downloads

Mounting and wiring instructions – ES 41 Extreme

German, English, French, Italian, Portuguese

PDF1 MB 08.04.2026

Variants / Options

The following variants / options are available on request:

  • Plug-in connector M12 x 1, 4-pole

to your contact persons
