Position switch

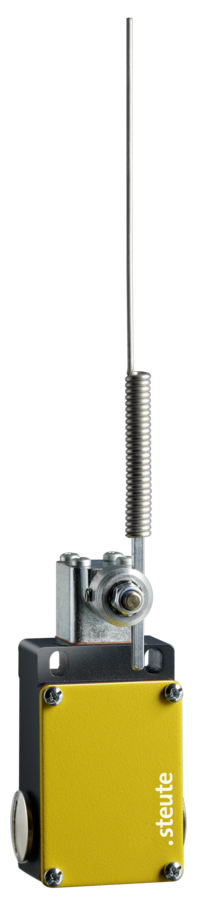

ES 41 DF 1Ö/1S +180°C Extreme
Article no.: 1179712Old article no.: 41027902
Product features
Metal enclosure
3 cable entries M16 x 1.5
Heat-resistant up to +180 °C
Locking screws, brass nickel-plated
Actuator: Spring-rod lever DF
Lever can be repositioned in 10° steps clockwise or counter-clockwise
Actuator can be repositioned by 180°
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated, RAL 7016
- Cover
- steel, powder-coated, RAL 1003
- Degree of protection
- IP65 (IEC/EN 60529)
- Contact material
- silver
- Switching system
- slow action
- Switching elements
- 1 NC/1 NO contact, type Za
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 3 x M16 x 1.5
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Short-circuit protection
- 6 A gG fuse
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 1800/h
- Ambient temperature
- –20 °C … +180 °C
- Repeat accuracy of switching points
- ± 0.1 mm
- Approvals
- a
- Weight
- 185 g

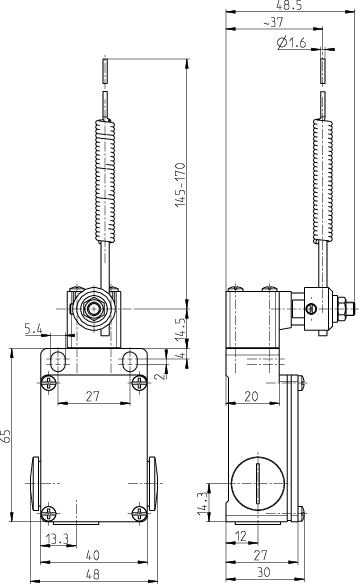

Dimensional drawing
Further drawings
Contact diagram
Switching diagram
Downloads
Variants / Options
The following variants / options are available on request:
Plug-in connector M12 x 1, 4-pole
Position switch
ES 41 DF 1Ö/1S +180°C ExtremeArticle no.: 1179712Old article no.: 41027902
