Wireless receiver
RF Rx SW915-4W 24 VAC/DC
Article no.: 1189618Old article no.: 90590022
contact usProduct features
sWave® wireless technology
4 potential-free relay outputs
4 change-over contacts
Transmitter/receiver assignment by teaching mode
LEDs for indication of switching state
SMA reverse plug-in connector for external antenna
Notes
External antenna always required for optimum range and to meet the licensing requirements for radio communications

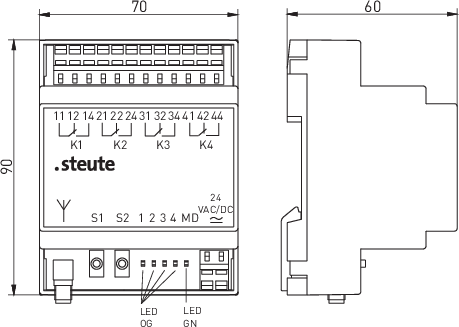

Technical data
General technical data
Applied standards
EN 300 220-2, EN 301 489-3, EN 60947-5-1, EN IEC 61000-6-2
Enclosure
polycarbonate, RAL 7035
Degree of protection
IP20 (IEC/EN 60529)
Mounting
DIN rail mounting
Connection
terminals with CAGE CLAMP WAGO Series 236: 0.08 … 2.5 mm² / AWG 28-12, AWG 12: THHN, THWN, stripping length 5 … 6 mm / 0.22 in
Outputs
4 change-over contacts (relays)
Rated operating current/voltage Ie/Ue
max. 0.09 A/24 VDC -15 % … +10 %; max. 0.15 A/24 VAC -15 % … +10 %;
output contacts: 6 A/250 VAC; 2 A/24 VDC
Utilisation category
outputs: AC-15 (at 10 % Ie); DC-13
Rated insulation voltage Ui
250 VAC
Rated impulse withstand voltage Uimp
2.5 kV
Display
1 x green LED: ready for operation,
4 x orange LED: signalling of switching state
Recovery time
max. 24 ms (measured from the start of a radio telegram to the end of the relay contact bounce time, with 1 x repetition of the radio telegram due to transmission disturbance)
Teachable transmitters
40
Telegram rate
max. 12000 telegrams with repetitions/h
Degree of pollution
2
Ambient temperature
0 °C … +55 °C
Storage and shipping temperature
–25 °C … +85 °C
Note
Inductive loads (contactors, relays etc.) are to be suppressed by suitable circuitry.
Wireless approvals
USA: FCC - XK5-RFRXSW915
Canada: IC - 5158A-RFRXSW915
Mexico: IFT - RCPSTRF17-1886
Approvals
d
Weight
155 g
Wireless technology
Protocol
sWave®
Frequency
915 MHz (USA, Canada, Mexico, Australia)
Transmission power
< 25 mW
Data rate
66 kbps
Channel bandwidth
550 kHz
