**RF IS FL: Installation and switching behaviour**

Wireless inductive sensor

RF IS M8 FL 0.5 m

Article no.: 1456649

Product features

Metal enclosure
M8 x 1 thread
Flexible (FL) installation with autocalibration
To be connected to RF 96 BU or RF I/O BU universal transmitter
With M8 plug-in connector, 4-pole, A-coded, straight

Notes

2 mounting nuts are included in delivery.

Technical data

General technical data

Applied standards: 2006/42/EG, 2014/35/EU, 2014/30/EU, 2011/65/EU, EN IEC 60947-5-2

Enclosure: brass, nickeled

Front surface: PVC

Degree of protection: IP67 (IEC/EN 60529)

Ambient temperature: –25 °C … +75 °C

Storage and shipping temperature: –25 °C … +75 °C

Humidity: 95 % non condensing

Mounting: threads and nuts: M8

Connection: plug-in connector M8 x 1, 4-pole, A-coded

Cable length: 0.5 m

Rated operating voltage U_e: 3.0 … 3.6 V

Rated operating current I_e: on average max. 25 µA (typ. @Vcc = 3.3 V)

Interfaces: M8 plug, 4-pole, A-coded, 1 switching output, 1 calibration input

Switching distances: Non-flush installation:
s_n 2 mm, s_r 1.8 … 2.2 mm, s_a 1.62 mm, s_u 1.62 … 2.42 mm
Flush installation *:
s_n 1.2 mm - aluminium
s_n 1.2 mm - steel
* The values depend on the installation material and installation conditions.

Measurement frequency: 10 Hz (The maximum frequency at which changes in the switching status can be transmitted depends on the radio system.)

Note: The sensor may only be used in combination with RF 96 BU or RF I/O BU

Dimensional drawing

Further drawings

Pin assignment

Contact diagram

Auto-calibration

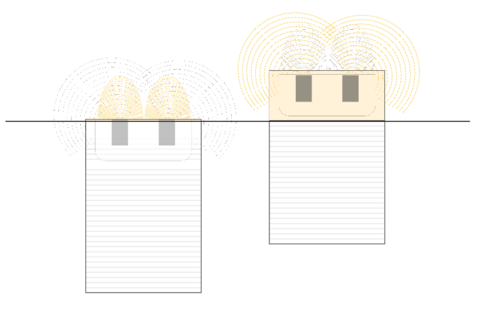

Thanks to automatic calibration, the sensor detects its installation situation and independently generates the appropriate field pattern for flush or non-flush mounting.
