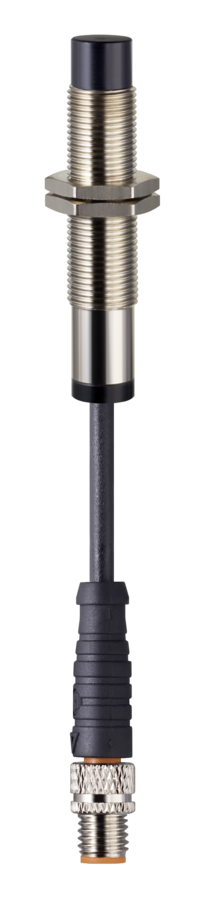

RF IS M12 FL 0.5 m

Applied standards

2006/42/EG, 2014/35/EU, 2014/30/EU, 2011/65/EU, EN IEC 60947-5-2

Enclosure

brass, nickeled

Front surface

PVC

Degree of protection

IP67 (IEC/EN 60529)

Ambient temperature

–25 °C … +75 °C

Storage and shipping temperature

–25 °C … +75 °C

Humidity

95 % non condensing

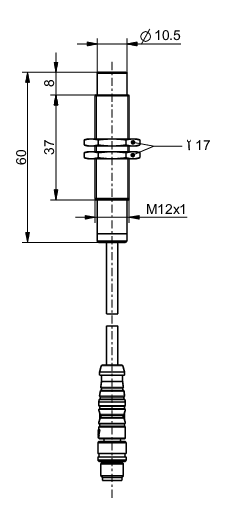

Mounting

threads and nuts: M12

Connection

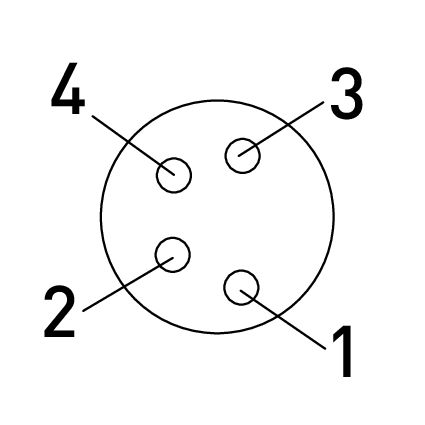

M8 plug, 4-pole, A-coded

Rated operating voltage U_e

3.0 … 3.6 V

Rated operating current I_e

on average max. 25 µA (typ. @Vcc = 3.3 V)

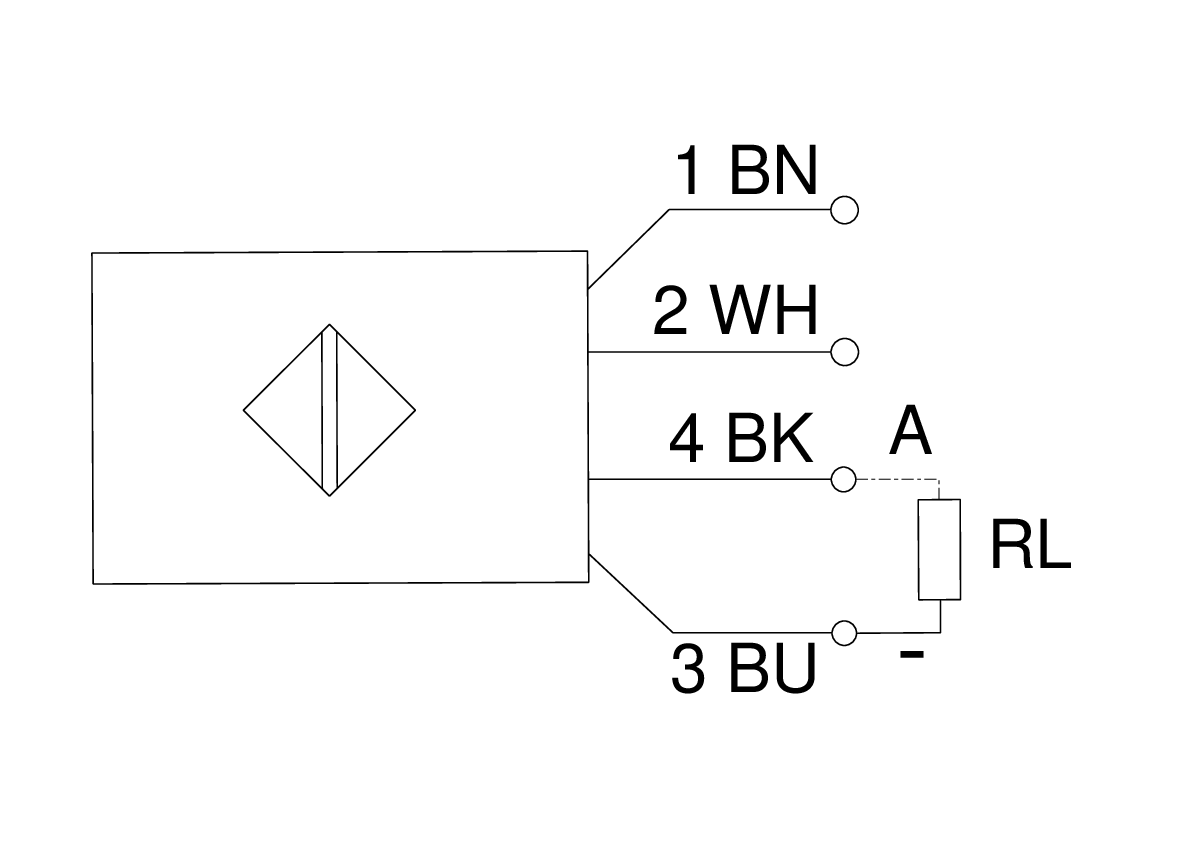

Interfaces

M8 plug, 4-pole, A-coded, 1 switching output, 1 calibration input

Switching distances

Flush installation *:
s_n 6 mm, s_r 5.4 … 6.6 mm, s_a 4.86 mm, s_u 4.86 … 7.26 mm
* The values depend on the installation material and installation conditions.
Non-flush installation:
s_n 4.2 mm - aluminium
s_n 4.0 mm - steel

Measurement frequency

10 Hz (The maximum frequency at which changes in the switching status can be transmitted depends on the radio system.)

Note

The sensor may only be used in combination with RF 96 BU or RF I/O BU
