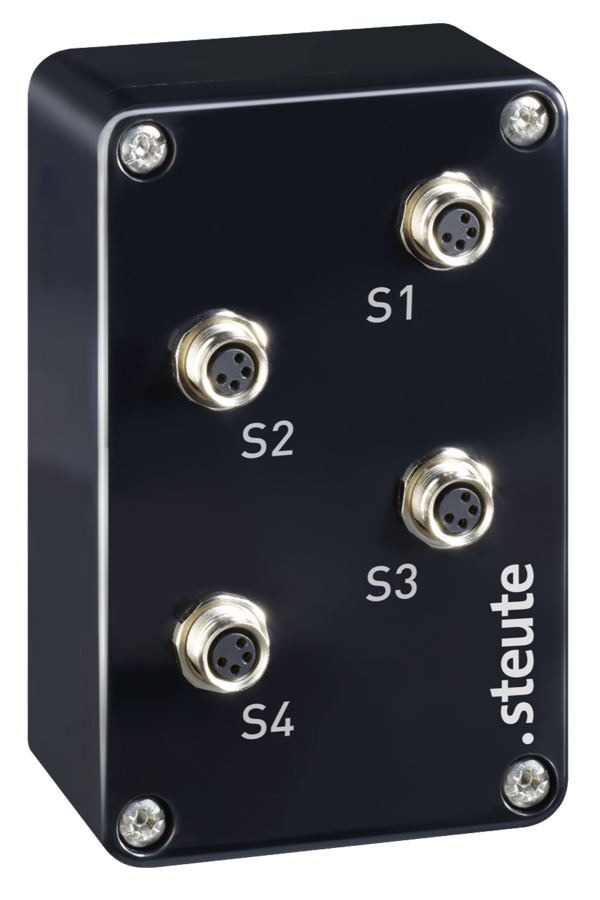

Wireless universal transmitter
RF I/O SW917-4E-BU-2,2Ah SMA LBT
Article no.: on request
This product is only available on request, please contact our sales team. contact usProduct features
Thermoplastic enclosure
4 x Socket M8
sWave® wireless technology
No wiring and cable laying required
Power supply by Lithium battery
Easy programming of receiver
Output signal can be individually configured at the receiver
LBT - Listen before Talk Firmware
With SMA connector for external antenna to increase range
Notes
The RF I/O BU may be used in combination with wireless inductive sensor RF IS M… FL.
The battery must be ordered separately.
Technical data
General technical data
Applied standards
EN IEC 60947-5-1, EN 301 489-3, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 63000
Enclosure
ABS, UL 94 HB, RAL 9005
Tightening torque
enclosure mounting screws: max. 1.5 Nm
cover screws: max. 1.5 Nm
Degree of protection
IP65 (IEC/EN 60529), only with plugged cables and/or with closed protective caps
Ambient temperature
–20 °C … +80 °C
Type of installation
mount on an even surface
Mounting position
any
Mounting
screw connection
Connection
4 x socket M8 x 1, 4-pole
Switching thresholds
max. switch-on threshold: 2.05 V,
min. switch-off threshold: 0.95 V
Switch-on delay ton
max. 0.94 ms
Switch-off delay toff
max. 94.7 ms
Actuating time
min. 80 ms
Telegram rate
max. 12000 telegrams with repetitions/h
Switching frequency
max. 5 Hz
Standby current
60 µA
Note
status signal – can be individually configured via radio receiver (delivery state: without status signal)
LBT – can be deactivated via radio receiver (e.g. in conjunction with repeaters)
transmission of battery voltage and switching condition
Wireless approvals
Brazil: ANATEL 04172-18-06718
Wireless technology
Protocol
sWave®
Frequency
917 MHz (Brazil)
Transmission power
< 25 mW
Data rate
66 kbps
Channel bandwidth
550 kHz
Wireless range
max. 450 m outdoors, max. 40 m indoors
Modulation type
2-FSK
Voltage supply
Voltage source
lithium battery Tadiran TL-5903 (replaceable)
System
Li/SOCl2
Nominal voltage
3.6 V
Nominal capacity
2.4 Ah
Battery life
depending on the switching frequency and number and type of sensors for 1000 transfers/day and one inductive sensor approx. 300 days; for 1000 transfers/day and one mechanical switch approx. 1400 days
