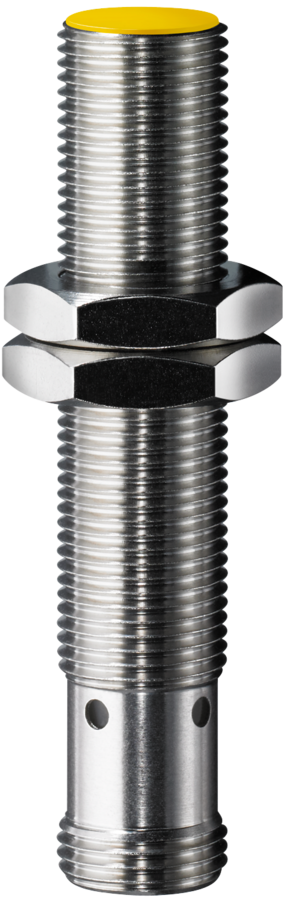

Product features
Metal enclosure
M12 x 1 thread
Flush mounting
Long life, no mechanical wear
Insensitive to soiling
With LED
With plug-in connector M12 x 1
Notes
2 mounting nuts are included in delivery.
Technical data
General technical data
- Applied standards
- EN 60947-5-2
- Enclosure
- brass, nickeled
- Front cap
- POM
- Degree of protection
- IP67 (IEC/EN 60529), only with plugged cable
- Connection
- plug-in connector M12 x 1, 4-pole
- Switching elements
- 1 NO contact, PNP, 3-wire
- Rated switching distance sn
- 2 mm
- Correction factors
- Steel (S235JR) = 1;
Stainless steel approx. 0.7; Brass approx. 0.5; Aluminium approx. 0.5; Copper approx. 0.4
- Rated operating voltage range UB
- 10 … 30 VDC
- Residual ripple
- ≤ 10 %
- Switching current
- max. 0.2 A
- Voltage drop at Ie
- max. 1.8 V
- Current absorption
- < 15 mA at 24 VDC
- Hysteresis
- approx. 10 %
- Switching frequency
- 1000 Hz
- Repeatability
- ≤ 3 %
- Protection circuit
- Inductive interference protection, protection against polarity reversal, short-circuit and overload proof
- LED display
- lights up yellow on actuation
- Ambient temperature
- –25 °C … +85 °C
- Weight
- 40 g

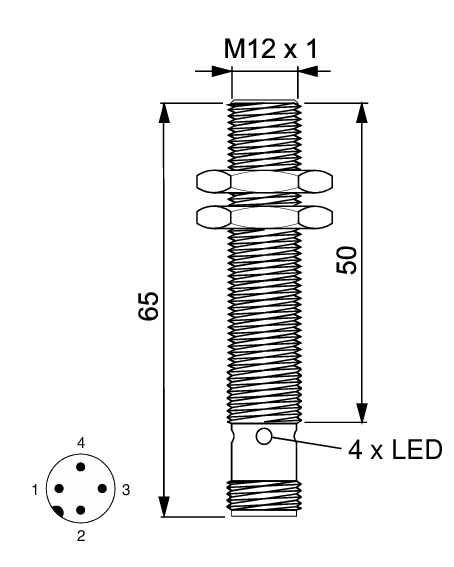

Dimensional drawing
Further drawings

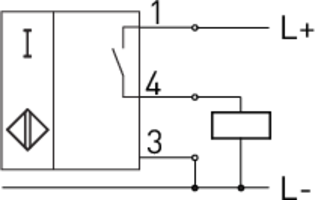

Contact diagram
Flush mounting
Side by side mounting
