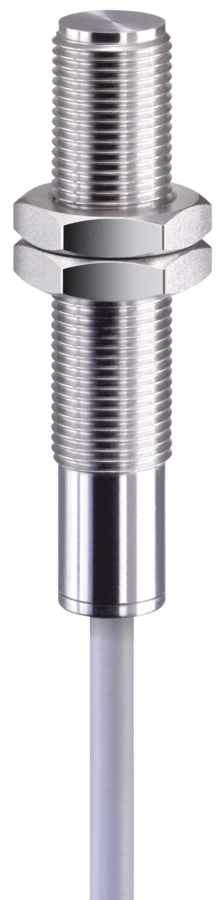

Inductive sensor

IS M12 full metal Extreme


  • Full metal housing stainless steel AISI 316L

  • High degree of protection IP69, IP69K

  • M12 x 1 thread

  • Flush mounting

  • Long life, no mechanical wear

  • Suitable for the food processing industry

  • Insensitive to soiling

  • With LED

  • With pre-wired cable or plug-in connector

Technical data

Applied standards
EN 60947-5-2
Enclosure
stainless steel AISI 316L full metal
Degree of protection
IP69 (IEC/EN 60529) / IP69K (ISO 20653)
Connection
cable PUR 4 x 0.25 mm² or plug-in connector M12 x 1
Switching elements
1 NO contact, NPN/PNP, 4-wire or PNP, 3-wire
Rated switching distance sn
3 mm
Correction factors
Steel (S235JR) = 1; Stainless steel approx. 0.7; Brass approx. 0.5; Aluminium approx. 0.5; Copper approx. 0.4
Rated operating voltage range UB
10 … 30 VDC
Residual ripple
≤ 10 %
Switching current
max. 0.2 A
Voltage drop at Ie
max. 1.8 V
Current absorption
< 2 mA at 24 VDC
Hysteresis
approx. 20 %
Switching frequency
50 Hz
Repeatability
≤ 1 %
Protection circuit
Inductive interference protection, protection against polarity reversal, short-circuit and overload proof
Ambient temperature
–25 °C … +70 °C
