Product features
Full metal housing stainless steel AISI 316L
High degree of protection IP69, IP69K
Flush mounting
Long life, no mechanical wear
Suitable for the food processing industry
Insensitive to soiling
With LED

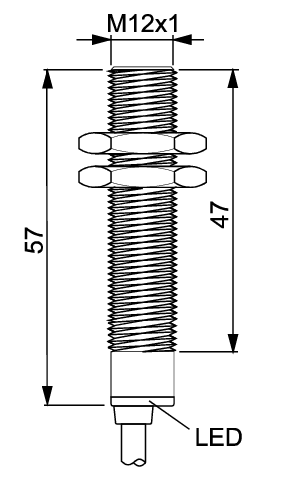

M12 x 1 thread
With pre-wired cable
Notes
2 mounting nuts are included in delivery
Technical data
General technical data
Applied standards
EN 60947-5-2
Enclosure
stainless steel AISI 316L full metal
Degree of protection
IP69 (IEC/EN 60529) / IP69K (ISO 20653)
Connection
cable PUR
Cable cross-section
4 x 0.25 mm²
Cable length
2 m
Switching elements

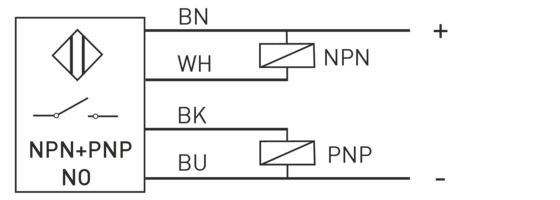

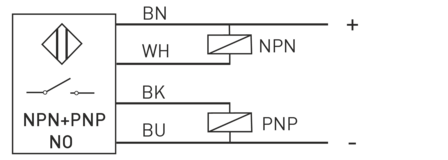

1 NO contact, NPN/PNP, 4-wire
Rated switching distance sn
3 mm
Correction factors
Steel (Fe360) = 1;
Rated operating voltage range UB
10 … 30 VDC
Residual ripple
≤ 10 %
Switching current
max. 0.2 A
Voltage drop at Ie
max. 1.8 V
Current absorption
< 2 mA at 24 VDC
Hysteresis
approx. 20 %
Switching frequency
50 Hz
Repeatability
≤ 1 %
Protection circuit
Inductive interference protection, protection against polarity reversal, short-circuit and overload proof
Ambient temperature
–25 °C … +70 °C
Weight
90 g
