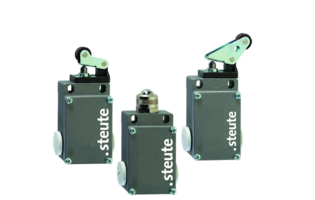

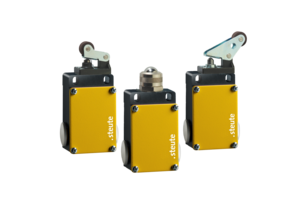

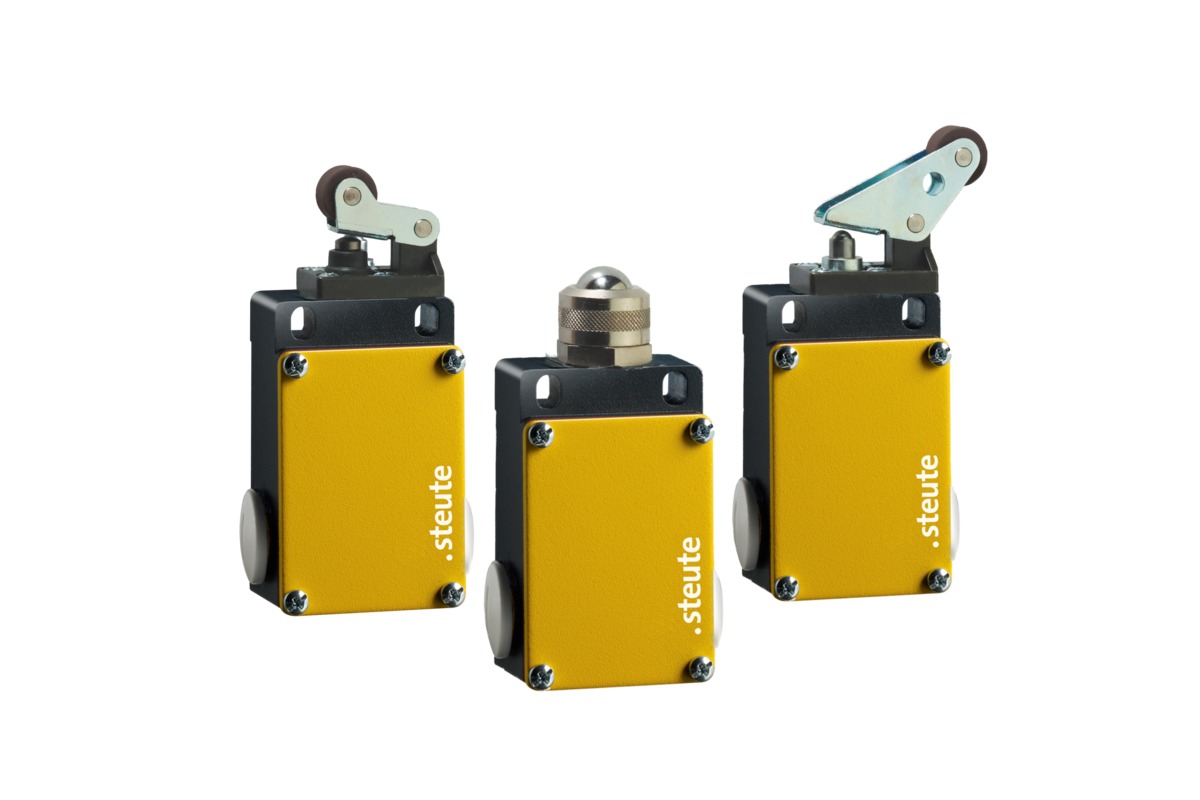

Position switch
ES 411 / EM 411
Metal enclosure
Slow or snap action
With 25 mm mounting centres, depth 34 mm
3 cable entries M16 x 1.5
When used as safety switch, secure the enclosure against slipping with appropriate means, e.g. pinning (only for ES 411).
Technical data
General technical data
Applied standards
EN ISO 13849-1, EN 60947-5-1, EN ISO 14119
Enclosure
aluminium die-cast, powder-coated
Switch type
type 1
Coding level
no coding
Degree of protection
IP65 (IEC/EN 60529)
B10d (10 % load)
2 million
TM
max. 20 years
Contact material
silver
Switching system
slow or snap action; slow action: positive break NC contacts A; positive break depends on the actuator used
Switching elements
1 NC/1 NO contact or 2 NC contacts
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
3 x M16 x 1.5
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG/gN fuse
Mechanical life
> 1 million operations
Operation cycles
max. 3600/h
Ambient temperature
–20 °C … +80 °C
Repeat accuracy of switching points
± 0.1 mm
Approvals
a
Downloads
Variants / Options
The following variants / options are available on request:
Gold-plated contacts
