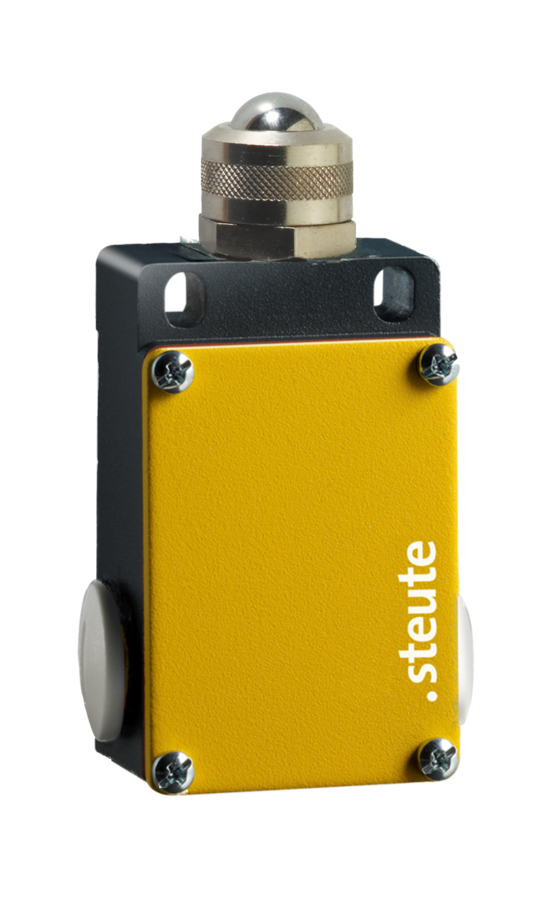

Product features
Metal enclosure
Snap action, change-over contact with double break
3 cable entries M16 x 1.5
Actuator: Ball plunger KU
Actuating speed max. 0.5 m/s with a vertical actuating angle of 20°
Vertical actuation or actuation from side possible
Actuator with captive stainless steel ball
Exact repeatability of switching point
Technical data
General technical data
Applied standards
EN 60947-5-1
Enclosure
aluminium die-cast, powder-coated
Degree of protection
IP65 (IEC/EN 60529)
Contact material
silver
Switching system
snap action
Switching elements
1 NC/1 NO contact, type Zb
Connection
screw connection terminals
Cable cross-section
max. 2.5 mm² (incl. conductor ferrules)
Cable entry
3 x M16 x 1.5
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
400 V
Conventional thermal current Ithe
6 A
Utilisation category
AC-15
Rated operating current/voltage Ie/Ue
6 A/400 VAC
Short-circuit protection
6 A gG/gN fuse
Mechanical life
> 1 million operations
Operation cycles
max. 3600/h
Ambient temperature
–20 °C … +80 °C
Repeat accuracy of switching points
± 0.1 mm
Approvals
a
Weight
166 g
Downloads
Variants / Options
The following variants / options are available on request:
Gold-plated contacts
