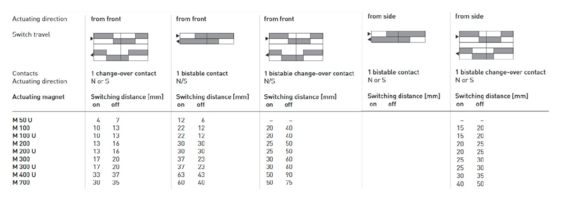

Actuating distances RC M20

Magnetic sensor

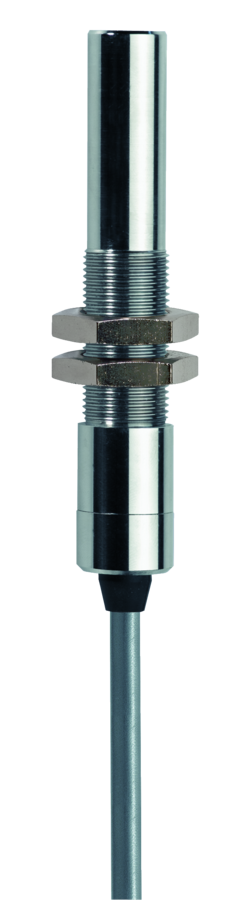

RC M20


  • Metal enclosure

  • Long life

  • 1 Reed contact

  • Actuation from front, actuation from side only with bistable contact

  • Switching distance up to 30 mm depending on the actuating magnet

  • With pre-wired cable

Notes

  • 2 mounting nuts are included in delivery.

  • The actuator is not included in the delivery of the switches.

Technical data

Applied standards
EN IEC 60947-5-2
Enclosure
brass, nickeled
Degree of protection
IP67 (IEC/EN 60529)
Actuating magnet
series M permanent magnet
Switching system
reed contacts
Switching elements
NO contact, change-over contact or bistable contact
Connection
cable H05VV-F
Cable cross-section
1S: 2 x 0.75 mm², 1W: 3 x 0.75 mm²
Cable length
1, 2 or 5 m
Switching voltage
max. 250 VAC/DC
Switching current
max. 1.5 A
Switching capacity
1S: max. 100 W, 1W: max. 50 W
Ambient temperature
–10 °C … +80 °C
Mechanical life
109 operations
Repeatability
± 0.02 mm
Approvals
< on request

Downloads

Mounting and wiring instructions – RC

German, English, French, Italian, Portuguese

PDF 2 MB 13.11.2025
Please go to the relevant product pages for additional downloads.

Variants / Options

The following variants / options are available on request:

  • Stainless steel enclosure

  • Maritime certification to DNV <

to your contact persons

Other interesting products

Ex RC M20

Alternative version with explosion protection

Ex

RC M20 Niro -60°C Extreme

Cold-resistant version
