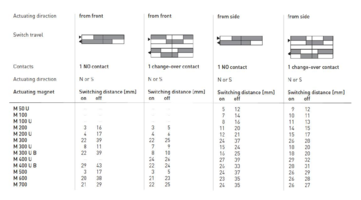

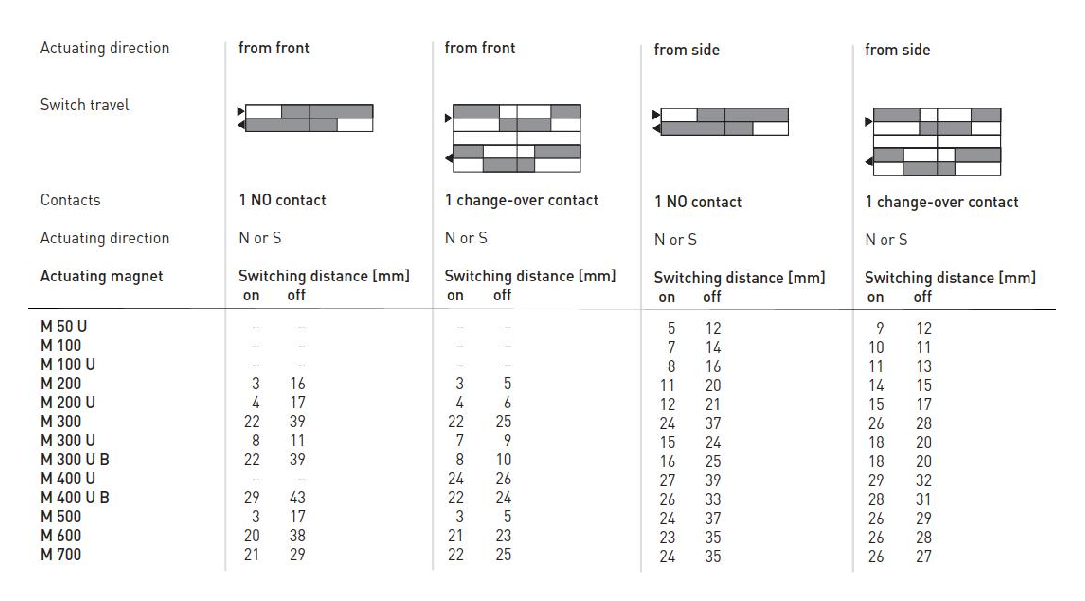

Actuating distances RC 3

Magnetic sensor

RC 3


  • Metal enclosure

  • Long life

  • 1 Reed contact

  • Actuation from front and from side

  • Switching distance up to 29 mm depending on the actuating magnet

  • With pre-wired cable

Notes

  • 1 mounting nut is included in delivery.

  • The actuator is not included in the delivery of the switches.

Technical data

Applied standards
EN IEC 60947-5-2
Enclosure
aluminium
Degree of protection
IP67 (IEC/EN 60529)
Actuating magnet
series M permanent magnet
Switching system
reed contacts
Switching elements
NO contact or change-over contact
Connection
cable PVC
Cable cross-section
1S: 2 x 0.5 mm², 1W: 3 x 0.5 mm²
Switching voltage
max. 250 VAC/DC
Switching current
1S: max. 2 A; 1W: max. 0.5 A
Switching capacity
1S: max. 50 W; 1W: max. 15 W
Ambient temperature
–10 °C … +80 °C
Mechanical life
109 operations
Repeatability
± 0.02 mm

Downloads

Mounting and wiring instructions – RC

German, English, French, Italian, Portuguese

PDF 2 MB 13.11.2025
Please go to the relevant product pages for additional downloads.
