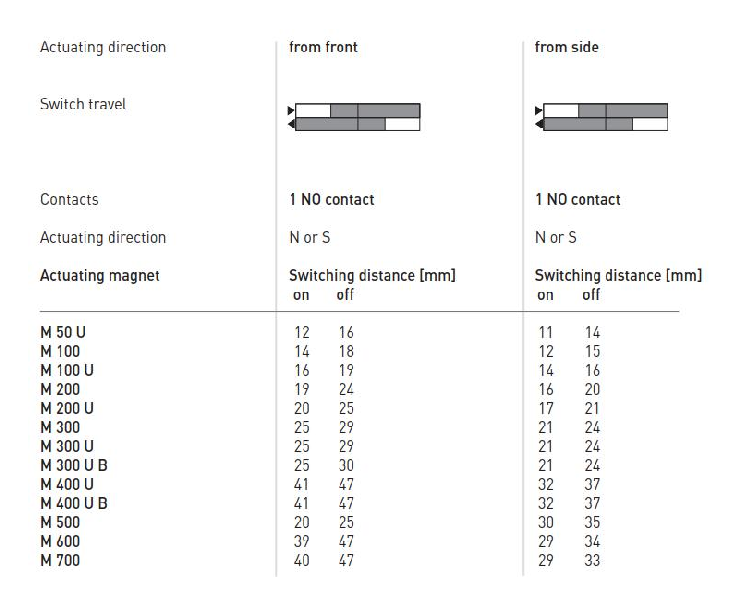

Actuating distances RC 20

Magnetic sensor

RC 20


  • Metal enclosure

  • Long life

  • 1 Reed contact

  • Actuation from front and from side

  • Switching distance up to 41 mm depending on the actuating magnet

  • With pre-wired cable or plug-in connector

Notes

  • 2 mounting nuts are included in delivery.

  • The actuator is not included in the delivery of the switches.

Technical data

Applied standards
EN IEC 60947-5-2
Enclosure
brass, nickeled
Degree of protection
IP67; with plug-in connector IP40 (IEC/EN 60529)
Actuating magnet
series M permanent magnet
Switching system
reed contacts
Switching elements
NO contact or change-over contact
Connection
cable PVC or 3-pole connector to IEC 61076-2-106
Cable cross-section
1S: 2 x 0.34 mm²; 1W: 3 x 0.14 mm²
Cable length
1, 2 or 5 m
Switching voltage
1S: max. 250 VAC/DC, 1W: max. 175 VAC/DC
Switching current
1S: max. 0.5 A, 1W: max. 0.25 A
Switching capacity
1S: max. 50 W, 1W: max. 3 W
Ambient temperature
–5 °C … +70 °C; -ST: –20 °C … +60 °C
Mechanical life
109 operations
Repeatability
± 0.02 mm

Downloads

Mounting and wiring instructions – RC

German, English, French, Italian, Portuguese

PDF 2 MB 13.11.2025
Please go to the relevant product pages for additional downloads.
