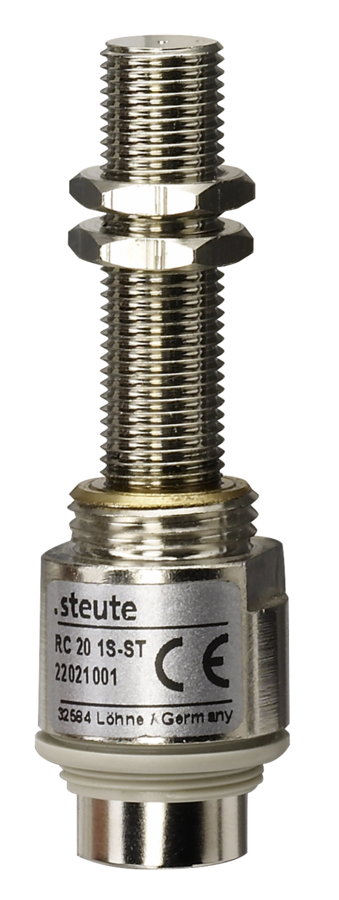

Product features
Metal enclosure
Long life
1 Reed contact
Actuation from front and from side
Switching distance up to 41 mm depending on the actuating magnet
Circular connector M16 x 0.75 to IEC 61076-2-106
Notes
2 mounting nuts are included in delivery.
The actuator is not included in the delivery of the switches.
Technical data
General technical data
- Applied standards
- EN IEC 60947-5-2
- Enclosure
- brass, nickeled
- Degree of protection
- IP40 (IEC/EN 60529), only with plugged cable
- Switching system
- reed contacts
- Switching elements
- 1 NO contact
- Connection
- 3-pole connector to IEC 61076-2-106
- Switching voltage
- 250 V
- Switching current
- max. 0.5 A
- Switching capacity
- max. 50 W/VA
- Ambient temperature
- –20 °C … +60 °C
- Mechanical life
- 109 operations
- Repeatability
- ± 0.02 mm
- Vibration resistance
- 20 g (10-2000 Hz)
- Shock resistance
- 50 g (11 ms, ½ sin)
- Weight
- 40 g

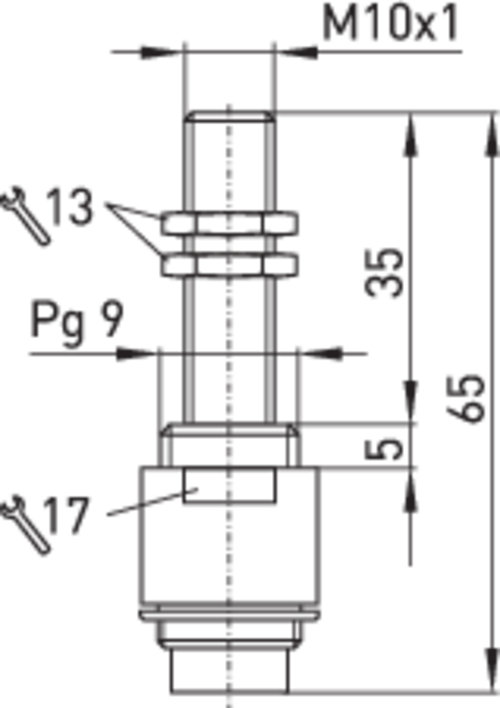

Dimensional drawing
Further drawings

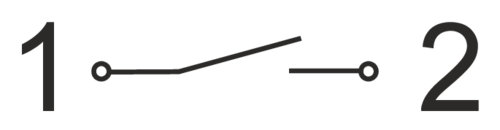

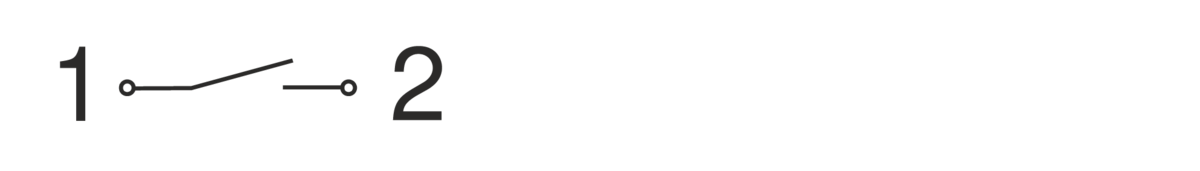

Contact diagram

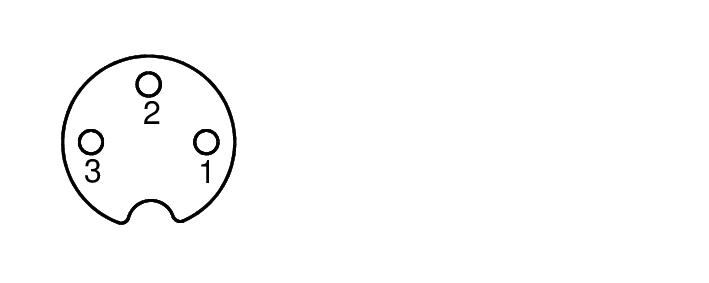

Pin assignment
