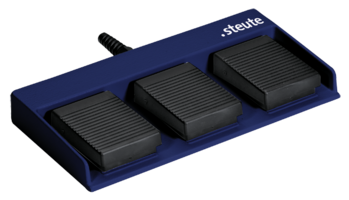

Foot switch with thermoplastic enclosure

KF 3


  • 3-pedal type

  • Thermoplastic enclosure with metal base plate

  • Max. 2 contacts per pedal

  • Wiring compartment

  • Reed contacts for low currents from 1 mA to 1 A

  • Micro switches for current load up to 5 A

Technical data

Applied standards
EN 60947-5-1
Enclosure
aluminium, enamel finish
Pedal
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP65 (IEC/EN 60529)
Connection
wiring compartment, cable gland M16 x 1.5 with spiral top
Clamping range
4 … 8 mm
Switching system
reed contacts or snap action: micro switch
Switching voltage
12 … 250 VAC/DC
Switch-on current
reed contacts: max. 1 A, micro switch: max. 5 A
Switch-on power
reed contacts: max. 30 VA, micro switch: max. 1250 VA
Ambient temperature
–10 °C … +60 °C
Mechanical life
> 1 million operations
Approvals
a

Downloads

Mounting and wiring instructions – KF / KFS

German, English, French, Italian, Portuguese

PDF 2 MB 13.11.2025
Mounting and wiring instructions – KF / KFS

German, English, Chinese

PDF 964 KB 19.01.2026
Please go to the relevant product pages for additional downloads.

Variants / Options

The following variants / options are available on request:

  • Cable

  • Plug-in connector

  • Other contact combinations
