Foot switch with thermoplastic enclosure
KF 3 1S/1S/1S
Article no.: on request
Product features
3-pedal type
Thermoplastic enclosure with metal base plate
Wiring compartment
Reed contacts (1 NO contact per pedal)
for low currents from 1 mA to 1 A
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- aluminium, enamel finish
- Pedal
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP65 (IEC/EN 60529)
- Connection
- wiring compartment, cable gland M16 x 1.5 with spiral top
- Clamping range
- 4 … 8 mm
- Switching system
- reed contacts
- Switching elements
- 1 NO contact per pedal
- Switching voltage
- 12 … 250 VAC/DC
- Switch-on current
- max. 1 A
- Switch-on power
- max. 30 VA
- Ambient temperature
- –10 °C … +60 °C
- Mechanical life
- > 1 million operations
- Approvals
- a
- Weight
- 1000 g
Dimensional drawing
Further drawings

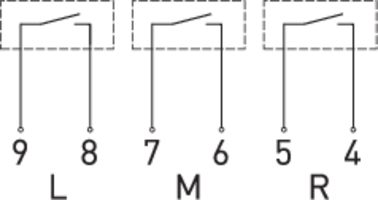

Contact diagram
Downloads
Variants / Options
The following variants / options are available on request:
Cable
Plug-in connector
Other contact combinations
