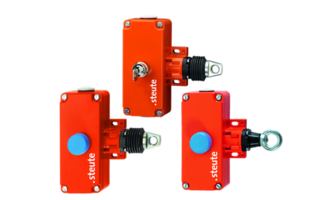

Emergency pull-wire switch
ZS 75
Metal enclosure
2 or 4 contacts
Wire length up to 130 m
2 different spring force variants available
Release by push button (VD) or key (VS) possible
Wire pull and breakage detection
Watertight collar W for protection against penetration of dirt available
Loading...
Found 19 results
Product
Standard Version
Product
Product
Product
Product
Product
Standard Version
Product
Product
Product
Standard Version
Product
Product
Product
Loaded 12 from 19 results
more products
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1
- Enclosure
- aluminium die-cast, powder-coated
- Cover
- aluminium die-cast, powder-coated
- Degree of protection
- ZS 75 WVD: IP65; ZS 75 VD, ZS 75 VS, ZS 75 WVS: IP54 (IEC/EN 60529)
- B10d (10 % load)
- 100 000
- TM
- max. 20 years
- Contact material
- silver
- Switching elements
- 1 NC/1 NO contact, 2 NC/2 NO contacts or 4 NC contacts, type Zb
- Switching system
- snap action, positive break NC contacts A
- Connection
- screw connection terminals
- Cable cross-section
- min. 0.5 mm², max. 2.5 mm² (incl. conductor ferrules)
- Stripping length
- 6 mm
- Cable entry
- 2 x M25 x 1.5 (for cable glands only)
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Short-circuit protection
- 6 A gG fuse
- Ambient temperature
- –25 °C … +70 °C
- Mechanical life
- > 100 000 operations
- Indicator lamp
- as option
- Max. wire length
- 130 m
- Note
- At 5 m distance intermediate wire supports are required. One wire thimble is provided.
- Approvals
- ß d a
Downloads
Variants / Options
The following variants / options are available on request:
Version with Dupline or Dupline Safe
