Emergency pull-wire switch
ZS 92 S 02 VD Si-Bus F1 KST -40°C … +70°C IP66/67 Extreme
Article no.: on request
Product features
Suitable for installation of a safety bus module
With integrated 8-pole Phoenix multi-way connector and bracket for safety bus module
Temperature resistant from -40 °C to +70 °C
High degree of protection IP66 / IP67
Thermoset enclosure
Wire length up to 2 x 100 m
Release by lever
F1 = blue reset lever on front (left)
Rear and base mounting possible
Wire pull and breakage detection
Notes
The safety bus module is not included in delivery.
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1, EN 620-5.7.2.9, AS 1755-2000-2.7.9.1, AS/NZS 4024.3610:2015-2.10.6.2
- Enclosure
- thermoset, grey, similar to RAL 7035
- Cover
- thermoset, enamel finish, yellow, similar to RAL 1012
- Actuating lever
- thermoset, signal red, similar to RAL 3001
- Reset lever
- thermoset, sky blue, similar to RAL 5015
- Screws
- stainless steel
- Tightening torque
- cover screws: max. 2.5 Nm
- Degree of protection
- IP66/IP67 (IEC/EN 60529)
- B10d (10 % load)
- 100 000
- TM
- max. 20 years
- Switching elements
- 2 NC contacts, type Zb
- Switching system
- snap action, positive break NC contacts A
- Connection
- screw connection terminals, basic strip to connect Dupline Safe input module with plug-in connector (see accessories)
- Cable cross-section
- 0.34 ... 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 2 x M25 x 1.5
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 250 V
- Conventional thermal current Ithe
- 10 A
- Utilisation category
- AC-15; DC-13
- Rated operating current/voltage Ie/Ue
- 4 A/250 VAC
- Conditional short-circuit current
- 1000 A
- Short-circuit protection
- 10 A gG/gL fuse
- Safety class
- II
- Mechanical life
- > 50 000 operations
- Max. wire length
- 2 x 100 m
- Note
- At 3 m distance intermediate wire supports are required. Two compensation springs type ZS 92 S must be installed, see accessories.
- Ambient temperature
- –40 °C … +70 °C
- Degree of pollution
- 3
- Actuating force
- actuating lever approx. 30 N; reset lever approx. 40 N
- Approvals
- d
Dimensional drawing
Further drawings

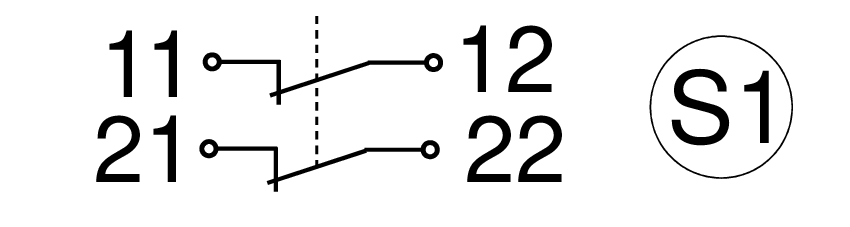

Contact diagram
S1 - Switch insert 1
Switching diagram
U Latching point
V Wire breakage detection
W Wire pull detection
S1 - Switch insert 1
Type F1

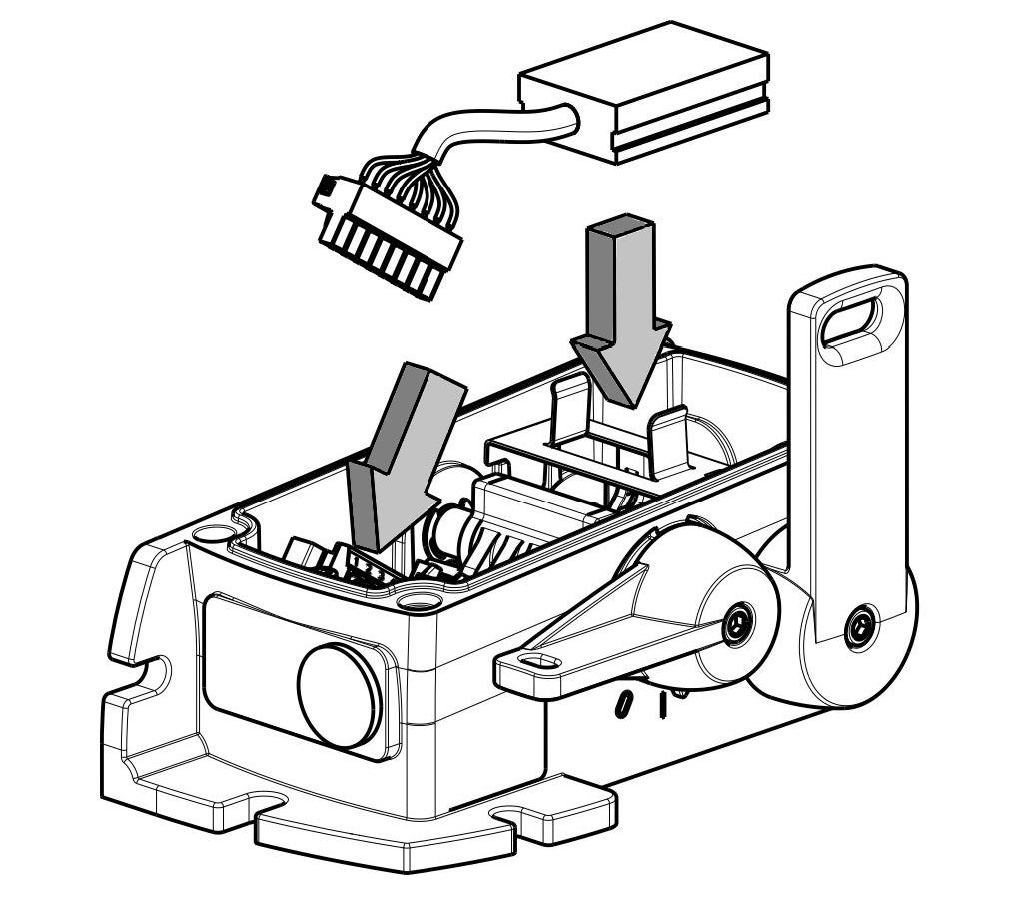

Installation of Si-Bus
