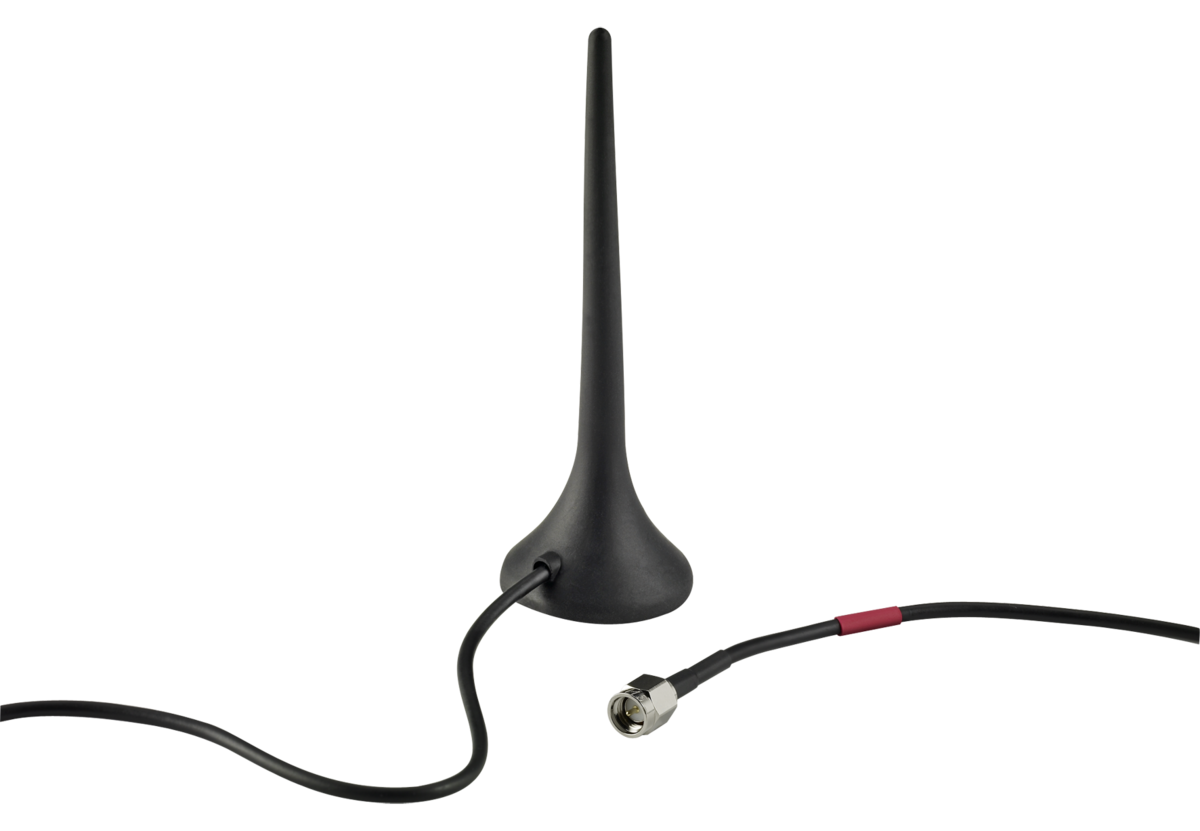

RF magnet antenna SMA plug-in connector straight 2.5 m
Article no.: 1186143Old article no.: 01.08.0386
Product features
RF magnet antenna with straight SMA plug-in connector without ferrite core
Suitable for SW868 and SW922
Cable length 2.5 m
Integrated magnetic base
Suitable for indoor use only
Technical data
General technical data
Frequency range
900 / 1800 / 1900 MHz
Impedance
50 Ω
Gain
0 dBi
Connection
cable RG174
Cable length
2.5 m
Connector
SMA (male)
Note
Magnetic antennae must be mounted on a metal plate of min. 250 x 250 mm size.
Weight
60 g
Dimensions
Drawings
Arrangement of receiver and switch antenna
A = Optimum mounting
B = Possible mounting
C = Unsuitable mounting
