**Arrangement of receiver and switch antenna**
A = Optimum mounting
B = Possible mounting
C = Unsuitable mounting

Standard version

Accessories for wireless receivers and repeaters

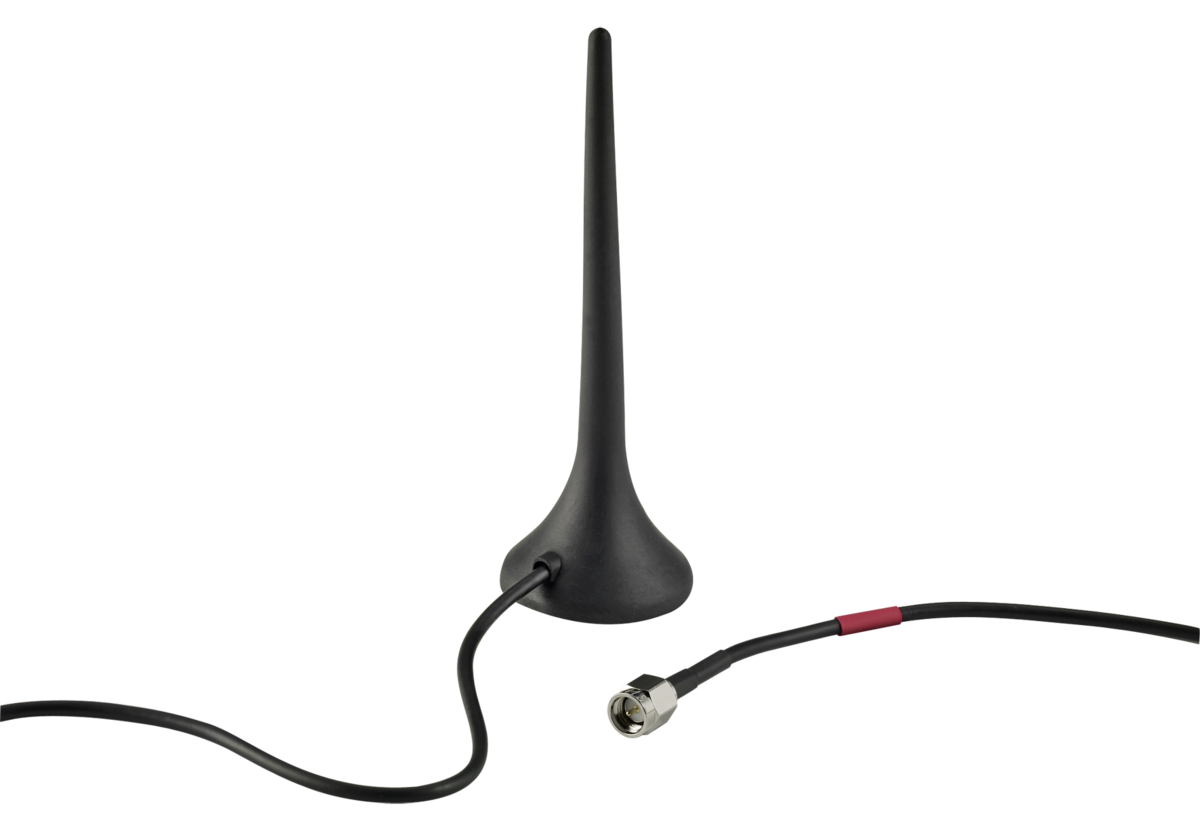

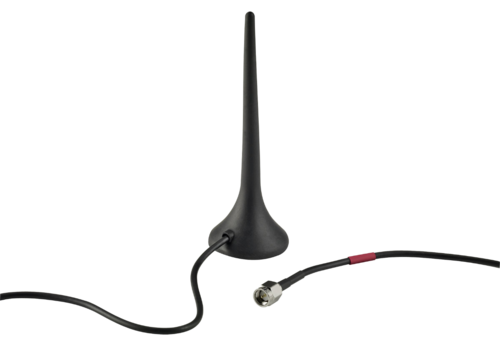

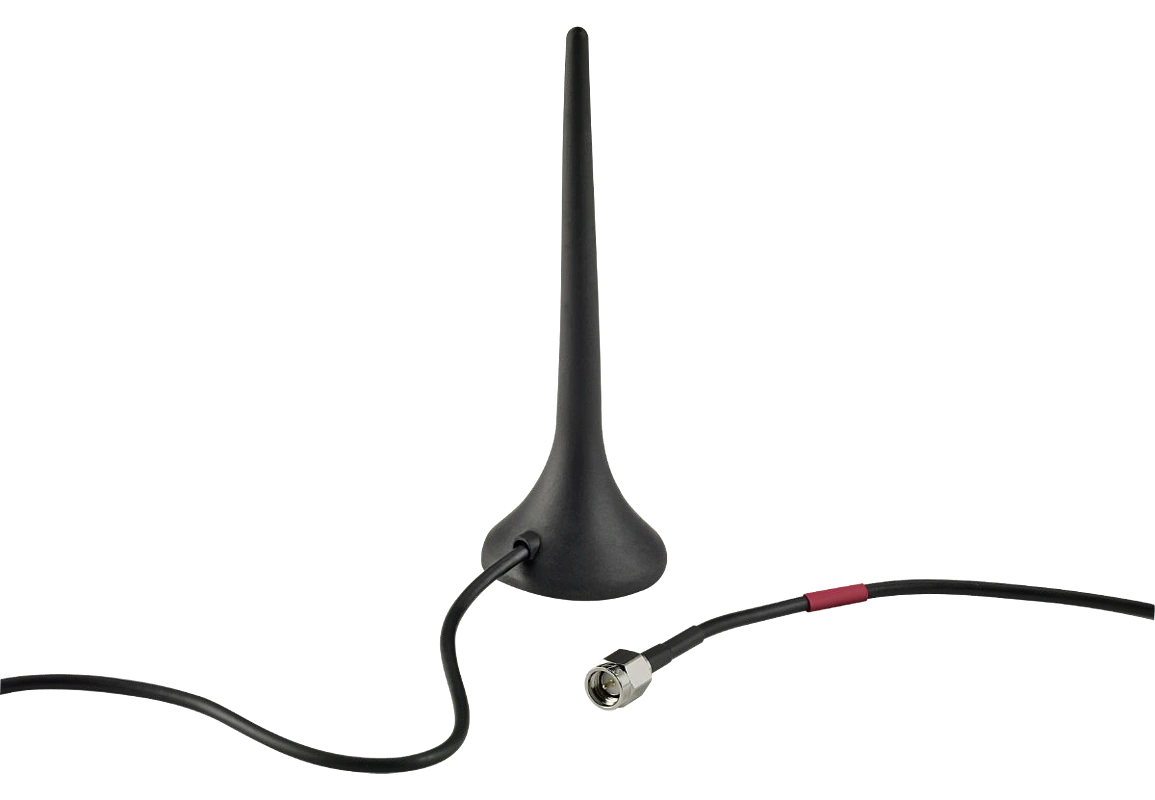

RF magnet antenna 2.4 GHz 1 m

Article no.: 1186917Old article no.: 01.08.0409

Product features

RF magnet antenna with straight SMA plug-in connector without ferrite core
Cable length 1 m

Technical data

General technical data

Enclosure

ABS

Frequency range

2.4 - 2.5 GHz

Impedance

50 Ω

VSWR

1.5 at maximum resonance

Gain

0 dBi

Radiation

omnidirectional

Polarization

linear, vertical

Max. power

50 W

Connector

SMA (male)

Cable length

1 m

Height

100 mm

Note

Magnetic base antennae must be mounted on a metal plate of min. 250 x 250 mm size.

Weight

36 g

Downloads

Data sheets

STEP-Files

Data sheet – RF magnet antenna 2.4 GHz 1 m

English

PDF117 KB 25.09.2024
