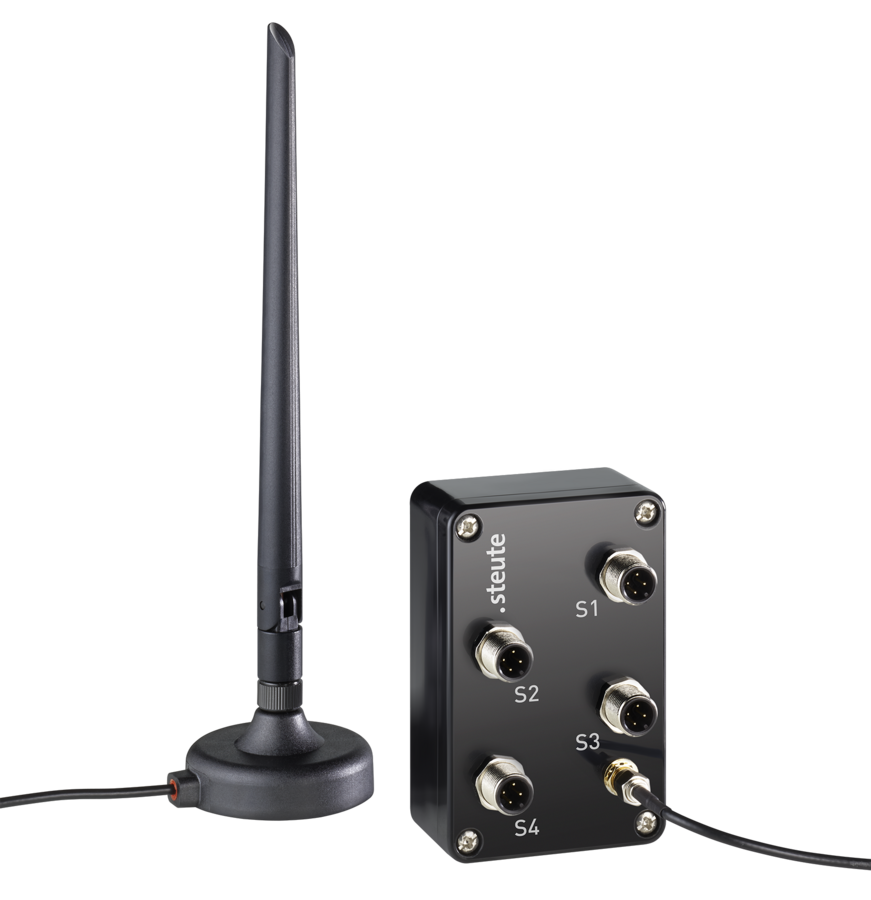

Product features
Thermoplastic enclosure
sWave® wireless technology
No wiring and pipe laying required
Power supply by Lithium battery
Easy programming of receiver
Output signal can be individually configured at the receiver
LBT - Listen before Talk software
With SMA connector for external antenna to increase range
Notes
The RF I/O may be used in combination with wireless inductive sensor RF IS or wireless magnetic sensor RF RC M10
Connection of external switching contact (potentialfree contact) with gold contacts possible.
Technical data
General technical data
Applied standards
EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2
Enclosure
ABS, UL 94 HB, RAL 9005
Tightening torque
enclosure mounting screws: max. 1.5 Nm
cover screws: max. 1.5 Nm
Degree of protection
IP65 (IEC/EN 60529)

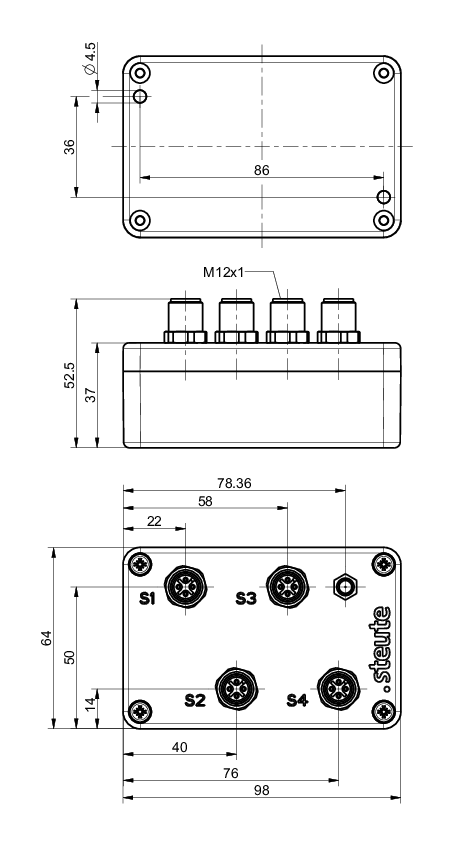

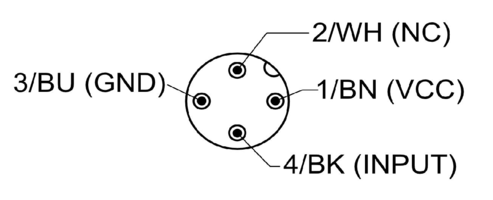

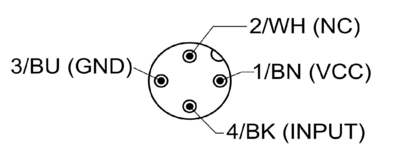

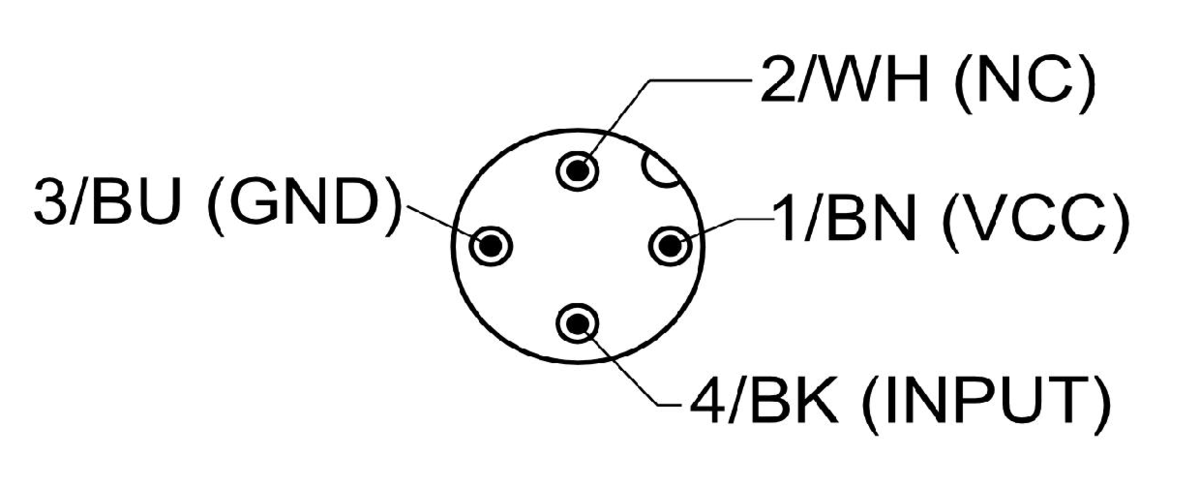

Connection
4 x plug-in connector M12 x 1, 4-pole
Connectable devices
RF IS M8, RF IS M12, RF IS M18, RF IS M30, RF RC M10, external switches using the coupling with connecting cable 1215497 or 1262873
Type of installation
mount on an even surface
Mounting position
any
Mounting
screw connection
Ambient temperature
–20 °C … +65 °C
Operation cycles
max. 12000 telegrams with repetitions/h
Switching frequency
max. 5 Hz
Standby current
60 µA
Actuating time
min. 80 ms
Note
status signal adjustable via jumper, no, 10 s, 100 s, 1000 s, 10000 s
delivery state: jumper position without status signal
transmission of battery voltage and switching condition
Wireless approvals
Europe: RED 2014/53/EU
Wireless technology
Protocol
sWave®
Frequency
868.3 MHz (Europe)
Transmission power
< 25 mW
Data rate
66 kbps
Channel bandwidth
350 kHz
Wireless range
max. 450 m outdoors, max. 40 m indoors
Modulation type
2-FSK
Voltage supply
Voltage source
lithium battery Tadiran SL-760 (replaceable)
System
Li/SOCl2
Nominal voltage
3.6 V
Nominal capacity
2.2 Ah
Battery life
depending on the switching frequency and number and type of sensors for 1000 transfers/day and one inductive sensor approx. 300 days; for 1000 transfers/day and one mechanical switch approx. 1400 days
