Product features
Thermoplastic enclosure

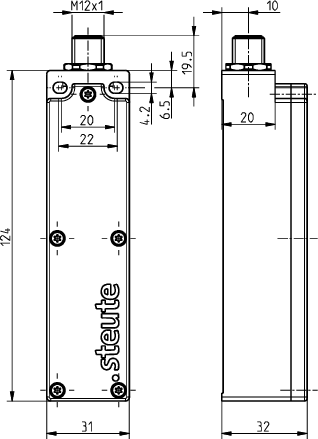

Mounting details to EN 50047
Plug-in connector M12
sWave® wireless technology
Easy programming of receiver
LBT - Listen before Talk Firmware
Option for switching off by external contact
No wiring and cable laying required
Power supply by Lithium battery
Output signal can be individually configured at the receiver
Notes
The RF 96 ST may be used in combination with wireless inductive sensor RF IS or
wireless magnetic sensor RF RC M10 .Connection of external switching contact (potentialfree contact) with gold contacts possible.
The battery must be ordered separately.
Technical data
General technical data
Applied standards
EN IEC 60947-5-1, EN IEC 61000-6-2, EN IEC 61000-6-3, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Tightening torque
M4 enclosure mounting screws: max 1.2 Nm
M2.5 cover screws: approx. 0.45 Nm
Degree of protection
IP67 (IEC/EN 60529), only with plugged cable
Connection

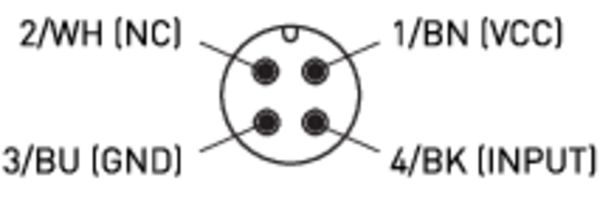

plug-in connector M12 x 1, 4-pole, A-coded
Connectable devices
RF IS M8, RF IS M12, RF IS M18, RF IS M30, RF RC M10, external switches using the coupling with connecting cable 1215497 or 1262873
Ambient temperature
–20 °C … +65 °C
Telegram rate
max. 12000 telegrams with repetitions/h
Switching frequency
max. 5 Hz
Standby current
15 µA
Actuating time
min. 80 ms
Note
status signal – can be individually configured via radio receiver (delivery state: without status signal)
LBT – can be deactivated via radio receiver (e.g. in conjunction with repeaters)
transmission of battery voltage and switching condition
Wireless approvals
Brazil: ANATEL 04172-18-06718
Wireless technology
Protocol
sWave®
Frequency
917 MHz (Brazil)
Transmission power
< 25 mW
Data rate
66 kbps
Channel bandwidth
550 kHz
Wireless range
max. 450 m outdoors, max. 40 m indoors
Modulation type
2-FSK
Voltage supply
Voltage source
lithium battery Tadiran TL-5920 (replaceable)
System
Li/SOCl2
Nominal voltage
3.6 V
Nominal capacity
8.5 Ah
Alternative voltage supply
Voltage source
lithium battery Tadiran SL-2770 (C), replaceable
System
Li/SOCl2
Nominal voltage
3.6 V
Nominal capacity
8.5 Ah
Battery life – inductive sensor
depending on the switching frequency
10 s: approx. 3.7 years
100 s: approx. 3.9 years
1,000 s: approx. 3.9 years
Battery life – magnetic sensor / external contact
depending on the switching frequency
10 s: >10 years (max. manufacturer's specification of storage life)
