Product features
Cold-resistant down to -40 °C
Ex zone 1 and 21
Thermoplastic enclosure with cable
Mounting details to EN 50047
Suitable for in-line mounting

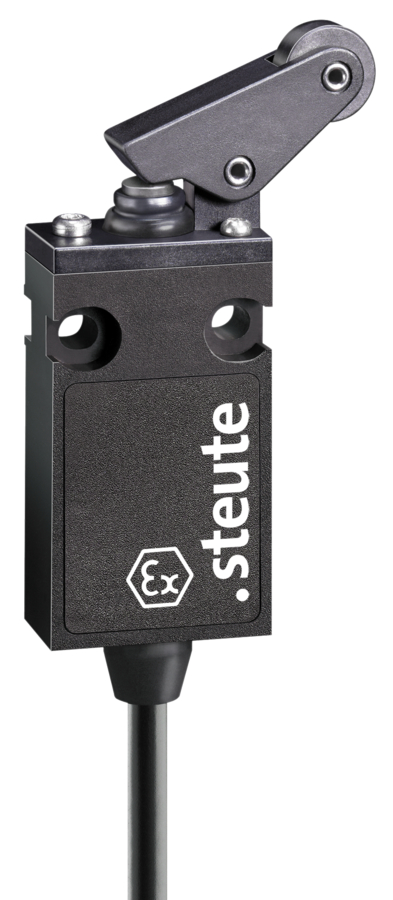

Actuator: Parallel roller lever with collar WPH
Actuating speed max. 0.5 m/s with a vertical actuating angle of 30°
Wear-resistant plastic roller
Watertight collar for protection against penetration of dirt
Attention: Please state required international approvals with your order!
Technical data
General technical data
Applied standards
EN 60947-5-1, EN IEC 60079-0, EN 60079-1, EN 60079-31, EN ISO 13849-1, EN ISO 14119
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Degree of protection
IP65 (EN IEC 60079-0 + IEC/EN 60529)
IP66 (IEC/EN 60529)
Contact material
silver
Switching system
snap action
Switching elements
1 NC/1 NO contact, type Za
Connection
cable BETAflam 145 flex
Cable cross-section
4 x 0.75 mm² (incl. conductor ferrules)
Cable length
5 m
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
250 V
Conventional thermal current Ithe
5 A
Rated operating current/voltage Ie/Ue
5 A/250 VAC; 0.25 A/230 VDC
Utilisation category
AC-1; DC-1
Short-circuit protection
5 A gG/gN fuse
Safety class
II
Ambient temperature
–40 °C … +60 °C
Mechanical life
> 1 million operations
Operation cycles
max. 1800/h
Repeat accuracy of switching points
± 0.1 mm

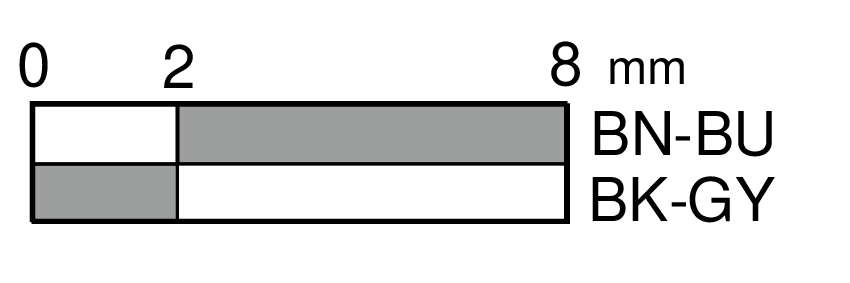

Contact opening
max. 2 x 4 mm
Ex marking
L II 2G Ex db IIC T6 Gb,
L II 2D Ex tb IIIC T80 °C Db
Approvals
PTB 00 ATEX 1006 X
IECEx PTB 13.0019X
Weight
420 g
Downloads
Variants / Options
The following variants / options are available on request:
Cable entry on side
Gold-plated contacts
Contact overlapping (only slow action)
Latching element (On-/Off principle)
Cold-resistant version down to -40 °C
Special version only for dust Ex zone 22
