Ex safety switch with separate actuator
Ex AZ 16 1Ö/1S-30N-1762-3D - 5m
Article no.: 1178601
Product features
Ex zone 22
Thermoplastic enclosure with cable
Multiple coding
30 N latching force
Suitable for front mounting
Notes
The actuator is not included in the delivery of the switches.
The screws for front mounting are not included in the delivery.
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN IEC 60079-0, EN 60079-1, EN 60079-31, EN ISO 13849-1, EN ISO 14119
- Enclosure
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Switch type
- type 2
- Coding level
- low coding
- Degree of protection
- IP67 (IEC/EN 60529)
- B10d (10 % load)
- 2 million
- TM
- max. 20 years
- Switch insert
- 1 x Ex 13
- Contact material
- silver
- Switching system
- slow action, positive break NC contacts A
- Switching elements
- 1 NC/1 NO contact, type Zb
- Connection
- cable H05VV-F
- Cable cross-section
- 4 x 0.75 mm² (incl. conductor ferrules)
- Cable length
- 5 m
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 250 V
- Conventional thermal current Ithe
- T6: 6 A, T5: 3 A
- Rated operating current/voltage Ie/Ue
- 6 A/250 VAC, 0.25 A/230 VDC
- Utilisation category
- AC-15; DC-13
- Short-circuit protection
- 6 A gG fuse
- Positive break force
- approx. 15 N
- Ambient temperature
- T6: –40 °C ... +65 °C,
T5: –40 °C ... +75 °C, +90 °C with max. 3 A
- Mechanical life
- > 1 million operations
- Impact energy
- max. 7 J
- Ex marking
- L II 3D Ex tc IIIC T80°C/T95°C Dc X

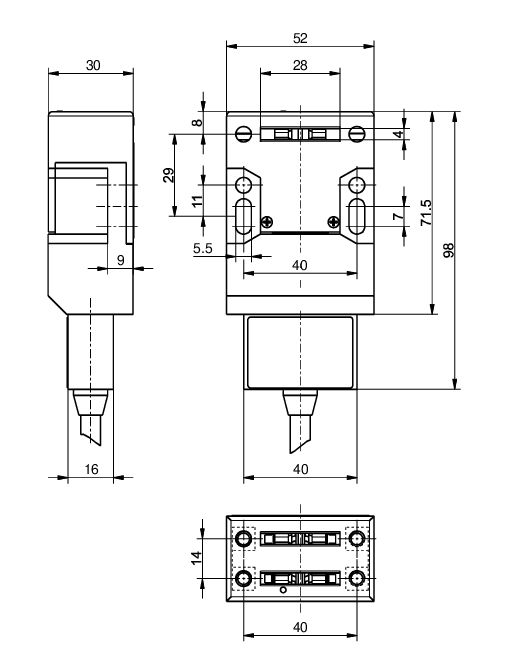

Dimensional drawing
Further drawings
Front mounting
Contact diagram
Switching diagram
T Positive break travel/angle
U Latching point only for actuator with ball latch
Note
Inserted position of actuator = 0 in switching diagram.
The actuator is not included with the switches.
