Product features
Metal enclosure
Slow action
2 contacts
Adjustable-length stainless steel rod lever with nylon roller
Belt alignment lever adjustable in 13° steps using a self-locking mechanism
Technical data
General technical data
- Applied standards
- EN ISO 13849-1, EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated
- Cover
- steel, powder-coated
- Degree of protection
- IP65 (IEC/EN 60529)
- B10d (10 % load)
- 2 million
- TM
- max. 20 years
- Contact material
- silver
- Switching elements
- 1 NC/1 NO contact with contact overlapping, type Zb
- Switching system
- slow action
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 3 x M20 x 1.5 (for cable glands only)
- Rated impulse withstand voltage Uimp
- 6 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 10 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 16 A/400 VAC
- Short-circuit protection
- 16 A gG fuse
- Ambient temperature
- –20 °C … +80 °C
- Mechanical life
- > 1 million operations
- Operation cycles
- max. 3600/h
- Weight
- 500 g
Dimensional drawing
Further drawings
Switching diagram

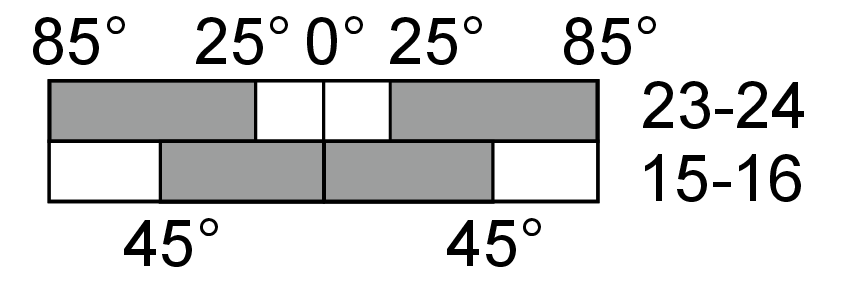

Contact diagram
