Product features
Cold-resistant down to -40 °C
Control panel mounting
Thermoplastic enclosure with cable
Mounting hole diameter 22.5 mm
Mounting details to EN 50047
Actuator: Emergency-stop push button QRUV
Actuator made of plastic
Reset by turning right or left
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13849-1, EN ISO 13850
- Enclosure
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
- Degree of protection
- IP67 (IEC/EN 60529), use only with enclosure for command devices
- B10d (10 % load)
- 12 100
- TM
- max. 20 years
- Contact material
- silver
- Switching system
- slow action, positive break NC contacts A
- Switching elements
- 2 NC contacts, type Zb
- Connection
- cable 4 x AWG 20
- Cable cross-section
- 4 x 0.56 mm²
- Cable length
- 2 m
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 250 V
- Conventional thermal current Ithe
- 6 A
- Rated operating current/voltage Ie/Ue
- 6 A/250 VAC; 0.25 A/230 VDC
- Utilisation category
- AC-15; DC-13
- Short-circuit protection
- 6 A gG/gN fuse
- Ambient temperature
- –40 °C … +65 °C
- Mechanical life
- > 6050 operations
- Operation cycles
- max. 1800/h
- Contact opening
- max. 2 x 4 mm
- Weight
- 154 g

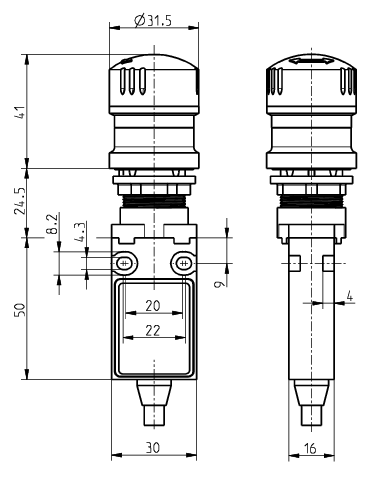

Dimensional drawing
Further drawings

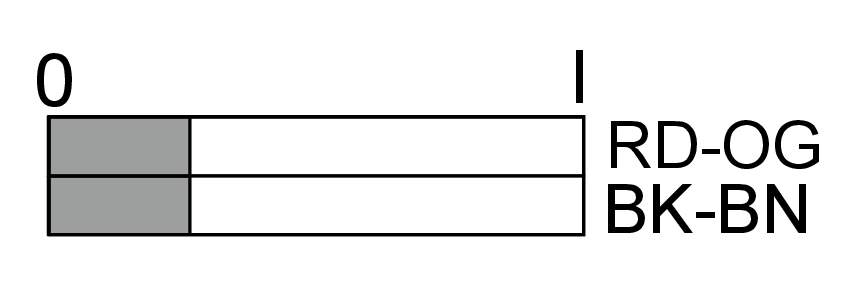

Contact diagram
Switching diagram
Downloads
Variants / Options
The following variants / options are available on request:
Cable entry on side
