Product features
Thermoplastic enclosure
Design to EN 50047
Horizontally slotted mounting holes
Cover fixed without screws
Actuator: Rocking lever D
Lever can be repositioned in 10° steps clockwise or counter-clockwise
Wear-resistant plastic roller
Actuator can be repositioned by 4 x 90°
Plug-in connector M12 x 1, 4-pole, A-coded
Technical data
General technical data
- Applied standards
- EN 60947-5-1, EN ISO 13849-1, EN ISO 14119
- Enclosure
- thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0, weathering resistant, UV stabilised
- Switch type
- type 1
- Coding level
- no coding
- Degree of protection
- IP66/IP67 (IEC/EN 60529), only with plugged cable
- B10d (10 % load)
- 2 million
- TM
- max. 20 years
- Switching system
- snap action, positive break NC contacts A
- Switching elements
- 1 NC/1 NO contact, type Zb
- Connection
- plug-in connector M12 x 1, 4-pole, A-coded
- Rated impulse withstand voltage Uimp
- 0.8 kV
- Rated insulation voltage Ui
- 50 V
- Conventional thermal current Ithe
- 4 A
- Utilisation category
- AC-15; DC-13
- Rated operating current/voltage Ie/Ue
- 4 A/50 VAC
- Short-circuit protection
- 4 A gG/gL fuse
- Safety class
- II
- Operation cycles
- max. 1800/h
- Mechanical life
- > 1 million operations
- Ambient temperature
- –30 °C … +70 °C
- Approvals
- da
Chemical resistance
Enclosure material resistant to:
oil and petrol, alcohol, animal fats and oils, vegetable fats and oils, silicone oils, surfactants, detergents, water vapour, salt water, organic acids (citric acid, benzoic acid)
Enclosure material not resistant to:
mineral acids (concentrated hydrochloric acid, battery acid, sulphuric acid, nitric acid)
Dimensional drawing
Further drawings

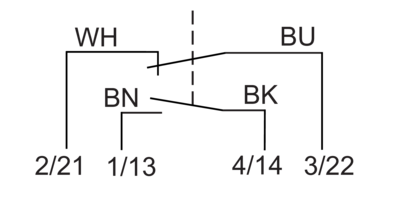

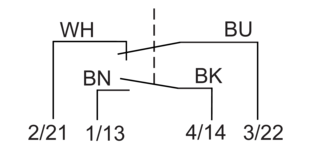

Contact diagram
Switching diagram
T Positive break travel/angle

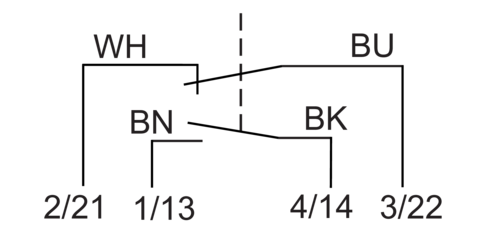

Pin assignment
