Product features
Metal enclosure
3 cable entries M16 x 1.5
Actuator: Offset roller lever HK
Actuation only possible from right-hand side, free movement of actuator from left-hand side
Wear-resistant plastic roller
Actuator can be repositioned by 4 x 90°
Technical data
General technical data
- Applied standards
- EN 60947-5-1
- Enclosure
- aluminium die-cast, powder-coated, RAL 7016
- Cover
- steel, powder-coated, RAL 1003
- Degree of protection
- IP65 (IEC/EN 60529)
- Contact material
- silver
- Switching system
- snap action
- Switching elements
- 1 NC/1 NO contact, type Zb
- Connection
- screw connection terminals
- Cable cross-section
- max. 2.5 mm² (incl. conductor ferrules)
- Cable entry
- 3 x M16 x 1.5
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated insulation voltage Ui
- 400 V
- Conventional thermal current Ithe
- 6 A
- Utilisation category
- AC-15
- Rated operating current/voltage Ie/Ue
- 6 A/400 VAC
- Short-circuit protection
- 6 A gG/gN fuse
- Mechanical life
- > 1 million operations
- Actuating speed
- max. 0.5 m/s with an actuating angle of 40°
- Operation cycles
- max. 3600/h
- Ambient temperature
- –20 °C … +80 °C
- Repeat accuracy of switching points
- ± 0.1 mm
- Approvals
- a
- Weight
- 160 g

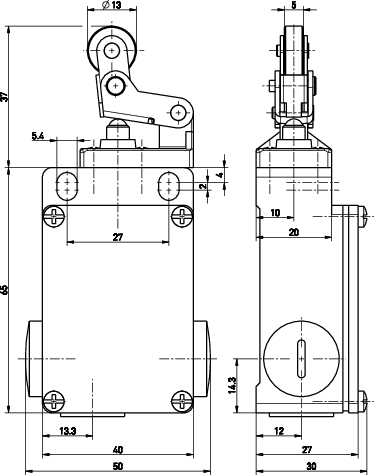

Dimensional drawing
Further drawings
Contact diagram

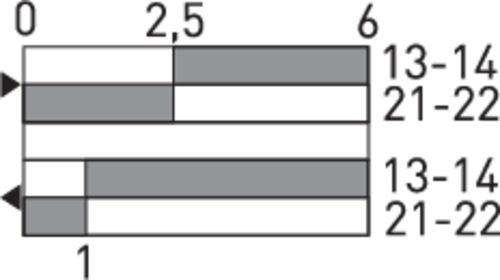

Switching diagram
Downloads
Variants / Options
The following variants / options are available on request:
Metal roller
Gold-plated contacts
Plug-in connector M12 x 1, 5-pole
Mechanical latching
