Actuating radii The axis of the hinge should be x mm above the top edge
of the safety switch and in the same plane.
a = Actuating radius to the plane of the actuator
b = Actuating radius in line with the plane of the actuator
x = Axial misalignment

Attention! x must be referred to the surface of the enclosure and not to the inserted actuator!
Standard version

Accessories for Ex 355 AZ

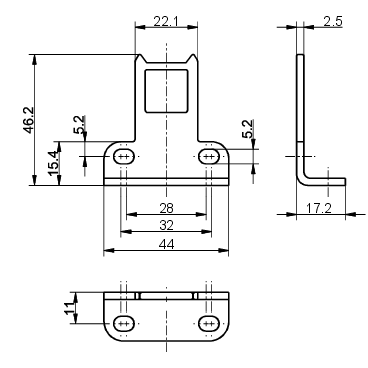

Angled actuator AZ 335/355-B5

Article no.: 1170538Old article no.: 01.08.0158

contact us

Product features

  • Especially suitable for hinged guards

  • Actuating radius on hinged guards a = 900 mm and b = 700 mm

  • Axial misalignment x = 16 mm

Downloads

Data sheet – Angled actuator AZ 335/355-B5

English

PDF115 KB 17.07.2024
Data sheet – Angled actuator AZ 335/355-B5

Chinese

PDF134 KB 17.07.2024
