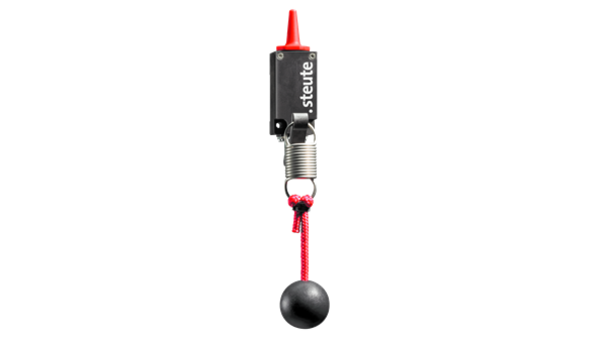

Wireless pull-wire switch
RF 95 WH/90°
Thermoplastic enclosure
Mounting details to EN 50047
Including 3.2 m long pull-wire and ball
sWave® wireless technology (SW868/SW915/SW917)
No power supply, no wiring and pipe laying required
Easy programming of receiver
Output signal can be individually configured at the receiver
RF 95 WH/90° LR SW917 - 3.2 m nylon pull-wire with rubber ball
RF 95 WH/90° ULR SW868 - 3.2 m nylon pull-wire with rubber ball
RF 95 WH/90° ULR SW917 - 3.2 m nylon pull-wire with rubber ball
Technical data
General technical data
Applied standards
EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 61000-4-2, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Cover
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Tightening torque
enclosure mounting screws: 1.2 … 1.3 Nm
cover screws: 0.5 … 0.6 Nm
Degree of protection
IP67 (IEC/EN 60529)
Voltage source
electrodynamic energy generator
Ambient temperature
–20 °C … +65 °C
Telegram rate
max. 12000 telegrams with repetitions/h
Wireless range
LR SW868/915/917:
max. 450 m outdoors,
max. 40 m indoors
ULR SW 868/915/917:
max. 700 m outdoors,
max. 50 m indoors
Mechanical life
> 1 million operations
Actuating time
min. 80 ms
Note
no status signal available
Wireless approvals
Europe: RED 2014/53/EU
USA: FCC - XK5-RF95SW915SR, XK5-RF95SW915LR
Canada: IC - 5158A-RF95SW915SR, 5158A-RF95SW915LR
Mexico: IFT - RCPSTRF17-1885, RCPSTRF17-1884
Brazil: ANATEL 04580-18-06718
