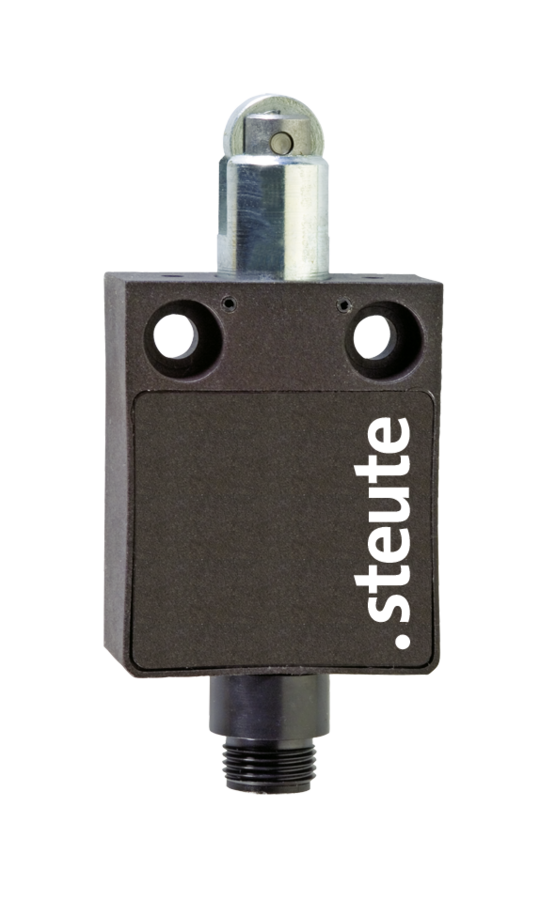

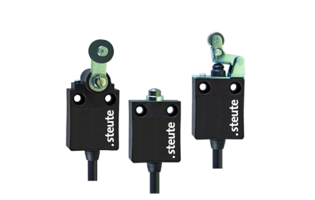

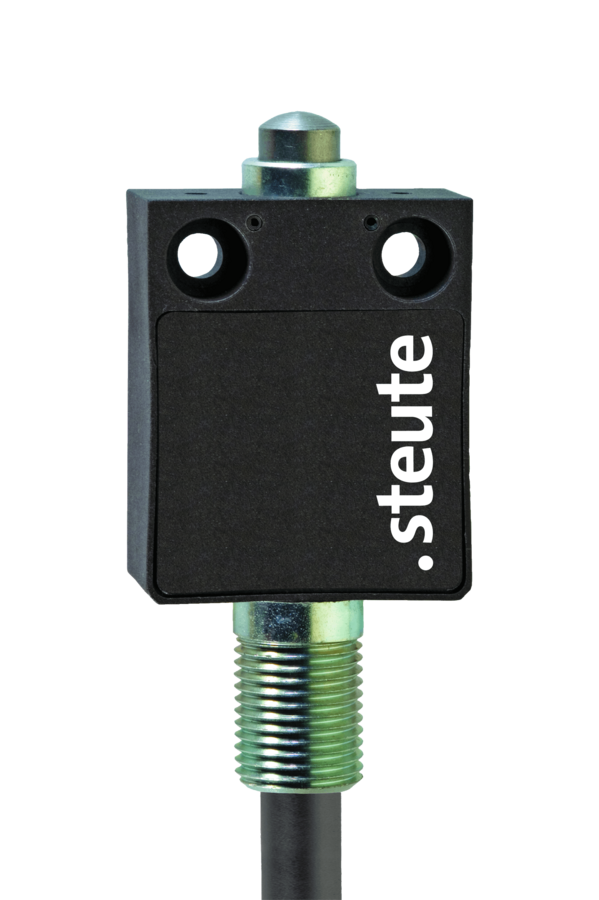

Position switch
ES 13
Thermoplastic enclosure
Double insulated X
Slow action
2 or 3 contacts
Version with 3 contacts has cable entry on side
Suitable for in-line mounting
With pre-wired cable
Technical data
General technical data
Applied standards
EN ISO 13849-1, EN 60947-5-1, EN ISO 14119
Enclosure
thermoplastic, glass-fibre reinforced, shockproof, self-extinguishing UL 94 V-0
Switch type
type 1
Coding level
no coding
Tightening torque
enclosure mounting screws: max. 5 Nm
Degree of protection
IP67 (IEC/EN 60529)
B10d (10 % load)
2 million
TM
max. 20 years
Contact material
silver
Switching system
slow action, positive break NC contacts A; positive break depends on the actuator used
Switching elements
1 NC/1 NO contact or 2 NC/1 NO, type Zb
Connection
2 contacts: cable H05VV-F; 3 contacts: cable 6 x AWG 20
Cable cross-section
2 contacts: 4 x 0.75 mm²; 3 contacts: 6 x 0.56 mm²
Rated impulse withstand voltage Uimp
4 kV
Rated insulation voltage Ui
250 V
Conventional thermal current Ithe
6 A
Rated operating current/voltage Ie/Ue
6 A/250 VAC; 0.25 A/230 VDC; 4 A/24 VDC
Utilisation category
AC-15; DC-13
Short-circuit protection
6 A gG/gN fuse
Ambient temperature
–20 °C … +75 °C
Mechanical life
> 1 million operations
Operation cycles
max. 1800/h
Repeat accuracy of switching points
± 0.1 mm
Contact opening
2 contacts: max. 2 x 4.5 mm; 3 contacts: max. 2 x 3.5 mm
Approvals
a
Downloads
Variants / Options
The following variants / options are available on request:
Cable entry on side
Gold-plated contacts
Plug-in connector M12 x 1, 4-pole
Plug-in connector M12 x 1, 5-pole
