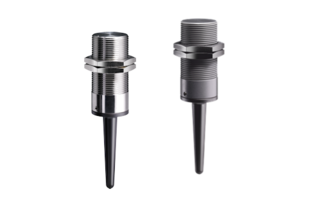

RF RC M30

Applied standards

EN 60947-5-1, EN IEC 61000-6-2, EN IEC 61000-6-3, EN 301 489-3, EN 300 220-2

Enclosure

Stainless steel 1.4539 or PVC-C

Degree of protection

IP67 (IEC/EN 60529)

Type of installation

flush, in not ferromagnetic material

Ambient temperature

–20 °C … +65 °C

Switching system

reed contact

Rated switching distance s_n

M 100: 15 mm; M 30 Niro: 30 mm

Hysteresis

< 1 mm

Switching frequency

max. 5 Hz

Standby current

< 2 µA (< 5 µA activated)

Wireless range

SW868/915/917:
max. 450 m outdoors,
max. 40 m indoors
SW922:
max. 150 m outdoors,
max. 20 m indoors

Mechanical life

> 1 million operations

Actuating time

min. 80 ms

Note

status signal – can be individually configured via radio receiver (delivery state: without status signal)
LBT – can be deactivated via radio receiver (e.g. in conjunction with repeaters)
transmission of battery voltage and switching condition
Go to our different wireless receivers to find corresponding how-to videos.

Wireless approvals

Europe: RED 2014/53/EU
USA: FCC-Id. XK5-RFRXSW915
Canada: IC - 5158A-RFRXSW915
Brazil: ANATEL 04172-18-06718
Japan: ? ARIB STD-T108: 204-610002

Voltage source

lithium battery CR 2032 (replaceable)

System

Lithium-MnO₂

Nominal voltage

3 V

Nominal capacity

0.23 Ah

Battery life

depending on the switching frequency (typ. @ 20 °C)
10 s: 1.1 years; 100 s: 5.0 years; 1000 s: 7.6 years; without: 8.0 years
