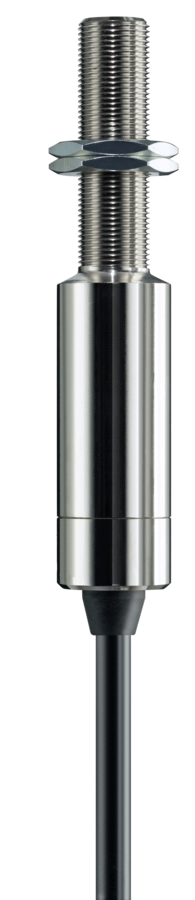

Magnetic sensor
RC M14 -40°C Extreme
Cold-resistant down to -40 °C
Metal enclosure
M14 x 1 thread
Actuation from front
Switching distance up to 30 mm depending on the actuating magnet
With pre-wired cable
Maritime certification to DNV (formerly GL)
Attention: Please state required international approvals with your order!
2 mounting nuts are included in delivery
The actuator is not included in the delivery of the switches
Neodymium magnet M 30 Niro: -60 °C ... +80 °C
Ferrit magnets: -35 °C ... +150 °C
Technical data
General technical data
Applied standards
EN IEC 60947-5-2
Enclosure
brass, nickeled
Degree of protection
IP67 (IEC/EN 60529)
Actuating magnet
series M permanent magnet
Switching system
reed contacts
Switching elements
1 NO contact
Connection
pre-wired cable MNZ45M, GL approval
Cable cross-section
2 x 0.75 mm²
Cable length
2 m
Switching voltage
max. 250 VAC/DC
Switching current
max. 2 A
Switching capacity
max. 50 W/VA
Bounce duration
max. 2 ms
Ambient temperature
–40 °C … +70 °C (fixed cable)
Mechanical life
> 1 million operations
Repeatability
± 0.02 mm
Vibration resistance
10 g (1-500 Hz)
Shock resistance
150 g (2 ms, ½ sin)
Approvals
<
