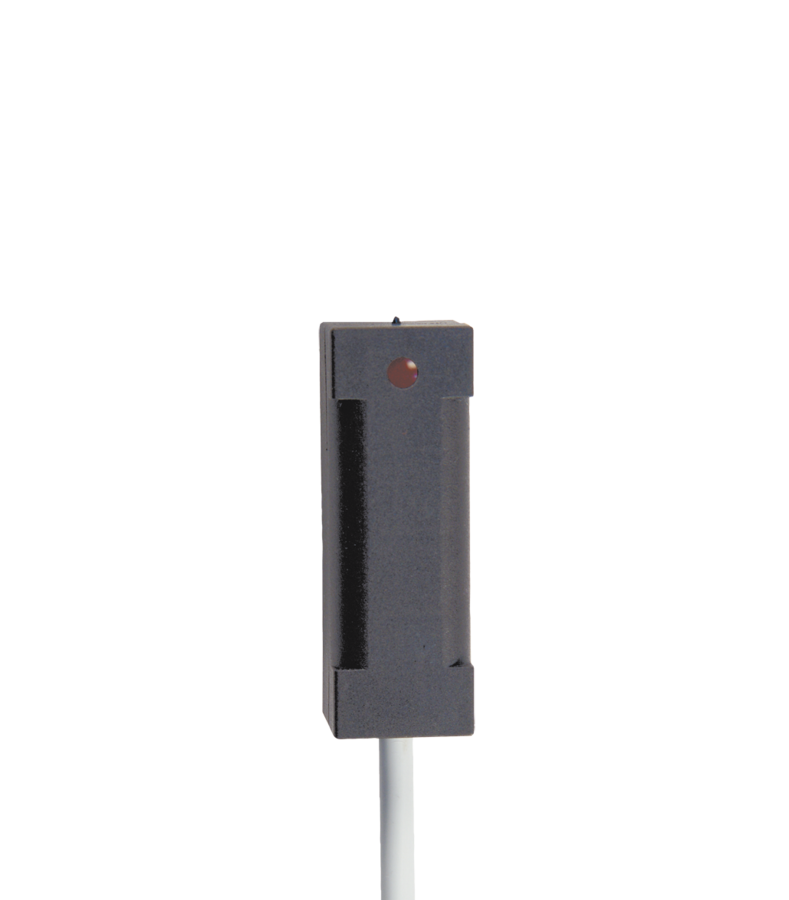

Magnetic sensor
RC 96
Thermoplastic enclosure
Application on pneumatic cylinders
Long life
1 Reed contact
Actuation from front and from side
With pre-wired cable
With LED
Notes
The actuator is not included in the delivery of the switches.
Loading...
Technical data
General technical data
- Applied standards
- EN IEC 60947-5-2
- Enclosure
- thermoplastic
- Degree of protection
- IP67 (IEC/EN 60529)
- Actuating magnet
- series M permanent magnet
- Switching system
- reed contacts
- Switching elements
- 1 NO contact
- Connection
- cable LiYY 2 x AWG 26
- Cable cross-section
- 2 x 0.14 mm²
- Cable length
- 1, 2 or 5 m
- Switching voltage
- max. 150 VAC / 200 VDC
- Switching current
- max. 1.5 A
- Switching capacity
- max. 50 W/VA
- Ambient temperature
- –10 °C … +80 °C
- Mechanical life
- 109 operations
- Repeatability
- ± 0.02 mm
- Vibration resistance
- 30 g (50-2000 Hz)
- Shock resistance
- 100 g (11 ms, ½ sin)
- Bounce duration
- max. 0.8 ms
